The diode in the circuit below has a threshold voltage of 0.7V. The input voltage waveform is shown on the left. Plot a

Post by answerhappygod »

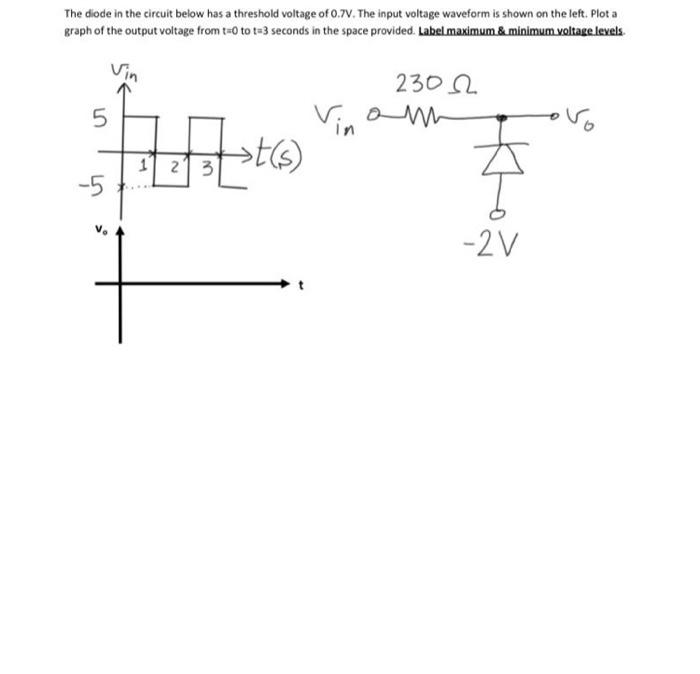

The Diode In The Circuit Below Has A Threshold Voltage Of 0 7v The Input Voltage Waveform Is Shown On The Left Plot A 1
The Diode In The Circuit Below Has A Threshold Voltage Of 0 7v The Input Voltage Waveform Is Shown On The Left Plot A 1 (20.85 KiB) Viewed 54 times
The diode in the circuit below has a threshold voltage of 0.7V. The input voltage waveform is shown on the left. Plot a graph of the output voltage from t=0 to t3 seconds in the space provided Label maximum & minimum voltage levels 2302 Vin v om 5 st(s) 1 2 3 -5 v -2V
