The solar panel shown below produces a voltage that ranges between (22-26V) at 12:00 noon. The same panel produces 4V at

Post by answerhappygod »

The Solar Panel Shown Below Produces A Voltage That Ranges Between 22 26v At 12 00 Noon The Same Panel Produces 4v At 1
The Solar Panel Shown Below Produces A Voltage That Ranges Between 22 26v At 12 00 Noon The Same Panel Produces 4v At 1 (21.9 KiB) Viewed 42 times

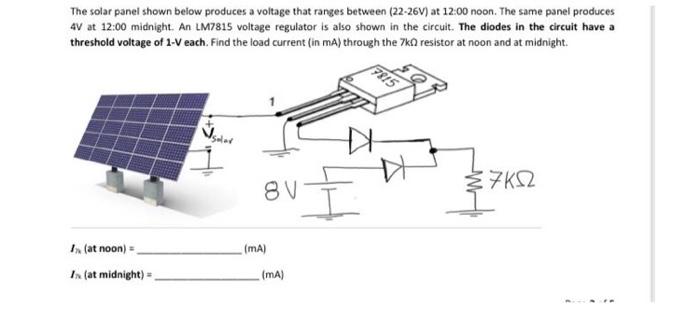

The solar panel shown below produces a voltage that ranges between (22-26V) at 12:00 noon. The same panel produces 4V at 12:00 midnight. An LM7815 voltage regulator is also shown in the circuit. The diodes in the circuit have a threshold voltage of 1-V each. Find the load current (in mA) through the 7k resistor at noon and at midnight 8V 37K22 u Is (at noon) (mA) I at midnight) (mA) - -
