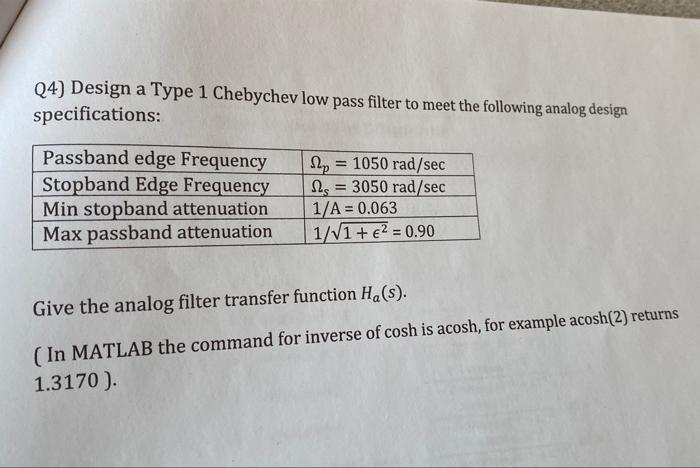

(4) Design a Type 1 Chebychev low pass filter to meet the following analog design specifications: = Passband edge Frequency Stopband Edge Frequency Min stopband attenuation Max passband attenuation p = 1050 rad/sec Rs = 3050 rad/sec 1/A = 0.063 1/11+ €2 = 0.90 Give the analog filter transfer function Ha(s). (In MATLAB the command for inverse of cosh is acosh, for example acosh(2) returns 1.3170).
