An Op-Amp Integrator has R;= 10 kA, C = 0.1 pF. Att = 0 ms, Vout = 0 V. If Vin=-0.5 V, what is Vout at t = 14 ms? .

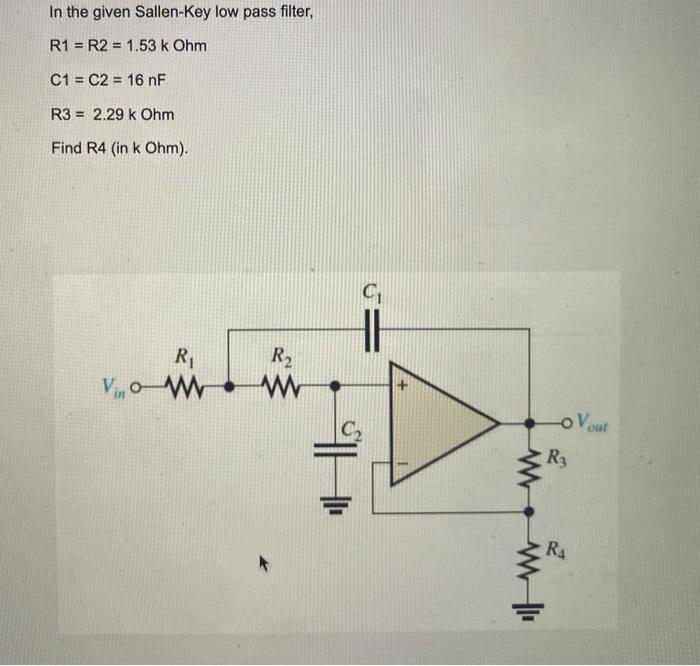

In the given Sallen-Key low pass filter, R1 = R2 = 1.53 k Ohm C1 = C2 = 16 nF R3 = 2.29 k Ohm Find R4 (in k Ohm). 11 R2 R, Vom w - Vour H w R3 R4
