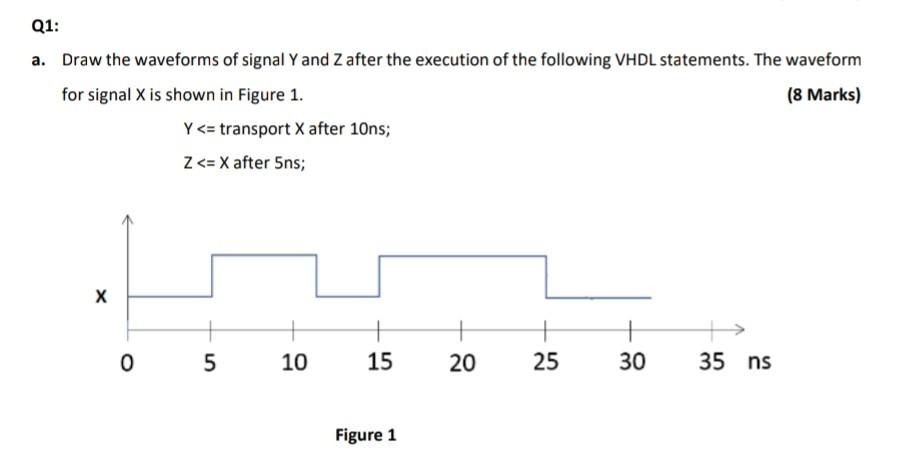

Q1: a. Draw the waveforms of signal Y and Z after the execution of the following VHDL statements. The waveform for signal X is shown in Figure 1. (8 Marks) Y<= transport X after 10ns; Z <= X after 5ns; X х + 20 0 0 5 10 15 25 30 35 ns Figure 1
