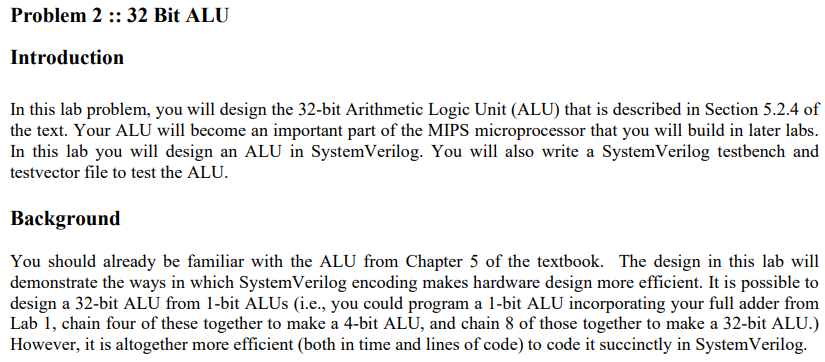

Problem 2 :: 32 Bit ALU Introduction In this lab problem, you will design the 32-bit Arithmetic Logic Unit (ALU) that is described in Section 5.2.4 of the text. Your ALU will become an important part of the MIPS microprocessor that you will build in later labs. In this lab you will design an ALU in SystemVerilog. You will also write a System Verilog testbench and testvector file to test the ALU. Background You should already be familiar with the ALU from Chapter 5 of the textbook. The design in this lab will demonstrate the ways in which SystemVerilog encoding makes hardware design more efficient. It is possible to design a 32-bit ALU from l-bit ALUS (i.e., you could program a l-bit ALU incorporating your full adder from Lab 1, chain four of these together to make a 4-bit ALU, and chain 8 of those together to make a 32-bit ALU.) However, it is altogether more efficient (both in time and lines of code) to code it succinctly in System Verilog.

You will only be doing ModelSim simulation in this lab, so you can use your favorite text editor (such as WordPad) instead of Quartus if you like. Create a 32-bit ALU in System Verilog. Name the file alu.sv. It should have the following module declaration: module alu(input logic (31:0] a, b, input logic (1:0) ALUControl, output logic (31:0] Result, output logic (3:0] ALUFlags); The four bits of ALUFlags should be TRUE if a condition is met. The four flags are as follows: ALUFlag bit Meaning 3 Result is negative 2 Result is 0 1 The adder produces a carry out 0 The adder results in overflow An adder is a relatively expensive piece of hardware. Be sure that your design uses no more than one adder.

2) Simulation and Testing Now you can test the 32-bit ALU in ModelSim. It is prudent to think through a set of input vectors Develop an appropriate set of test vectors to convince a reasonable person that your design is probably correct. Complete Table 1 to verify that all 5 ALU operations work as they are supposed to. Note that the values are expressed in hexadecimal to reduce the amount of writing. ALUFlags 4 Y 00000000 FFFFFFFF 00000000 8 0 6 O 00000000 00000001 0 Test ALUControl[1:0] A B ADD 0+0 00000000 00000000 ADD 0+ (-1) 00000000 FFFFFFFF ADD 1+(-1) 00000001 FFFFFFFF ADD FF+1 000000FF 00000001 SUB 0-0 00000000 00000000 SUB 0-(-1) 00000000 FFFFFFFF SUB 1-1 00000001 SUB 100-1 00000100 AND FFFFFFFF, FFFFFFFF FFFFFFFF AND FFFFFFFF, 12345678 FFFFFFFF 12345678 AND 12345678, 87654321 12345678 AND 00000000, FFFFFFFF 00000000 OR FFFFFFFF, FFFFFFFF FFFFFFFF OR 12345678, 87654321 12345678 OR 00000000, FFFFFFFF 00000000 OR 00000000, 00000000 00000000 Table 2.1. ALU operations 12345678 0

Build a self-checking testbench to test your 32-bit ALU. To do this, you'll need a file containing test vectors. Create a file called alu.tv with all your vectors. For example, the file for describing the first three lines in Table 1 might look like this: 0_00000000_00000000_00000000_4 0_00000000 FFFFFFFF_FFFFFFFF_8 0_00000001_FFFFFFFF_00000000_6 Hint: Remember that each hexadecimal digit in the test vector file represents 4 bits. Be careful when pulling signals from the file that are not multiples of four bits. You can create the test vector file in any text editor, but make sure you save it as text only, and be sure the program does not append any unexpected characters on the end of your file. For example, in WordPad select FileSave As. In the "Save as type” box choose "Text Document - MS-DOS Format" and type “alu.tv" in the File name box. It will warn you that you are saving your document in Text Only format, click “Yes”. Now create a self-checking testbench for your ALU. Name it testbench.sv. Compile your alu and testbench in ModelSim and simulate the design. Run for a long enough time to check all a of the vectors. If you encounter any errors, correct your design and rerun. It is a good idea to add a line with an incorrect vector to the end of the test vector file to verify that the testbench works!
