7. (8) A4 bit adder is shown below. It produces the sum (S) of two 4-bit numbers and Design a circuit that produces the

[answerhappygod]

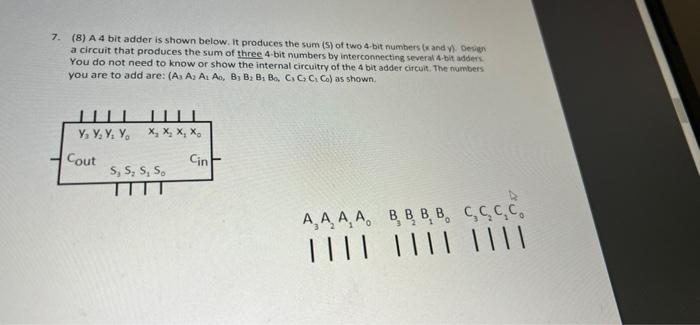

7 8 A4 Bit Adder Is Shown Below It Produces The Sum S Of Two 4 Bit Numbers And Design A Circuit That Produces The 1 (23.72 KiB) Viewed 35 times

7. (8) A4 bit adder is shown below. It produces the sum (S) of two 4-bit numbers and Design a circuit that produces the sum of three 4-bit numbers by interconnecting several A-bit adders You do not need to know or show the internal circuitry of the 4 bit adder circuit. The numbers you are to add are: (As AA: A, BBB: Bo, C, C C Co) as shown У, У, У, У. x x x, x Cout Cin S, S, S, S. AAAA А, А А А вввв сссс, . TIIT |||| ||||
