+20 V w R81 RD The common-source amplifier shown to the left has a bias arrangement with Rb1 = 15.7 MA, RB2 = 1 MN, Rp =
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
+20 V w R81 RD The common-source amplifier shown to the left has a bias arrangement with Rb1 = 15.7 MA, RB2 = 1 MN, Rp =

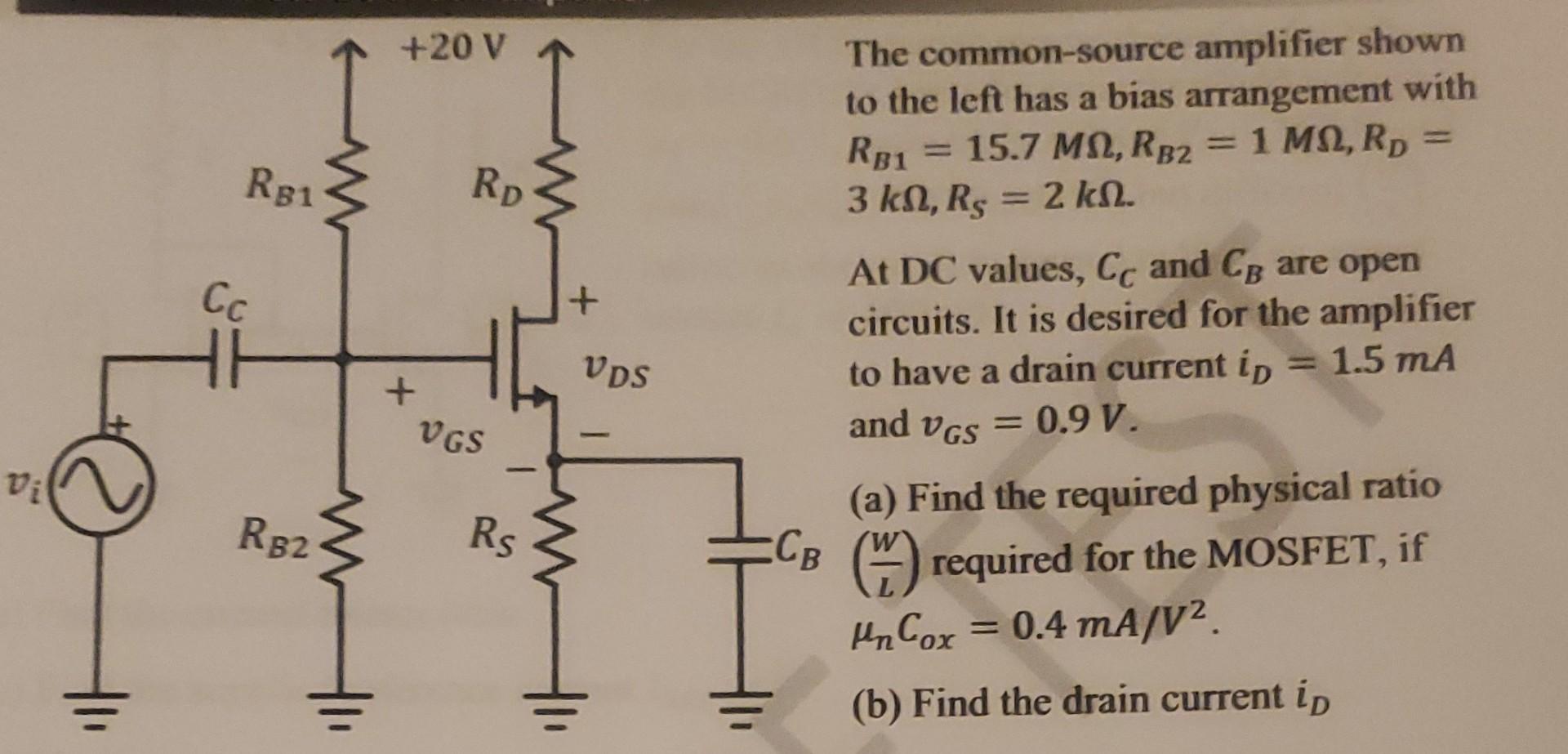

+20 V w R81 RD The common-source amplifier shown to the left has a bias arrangement with Rb1 = 15.7 MA, RB2 = 1 MN, Rp = 3 kΩ, Rς = 2 kΩ. At DC values, Cc and CB are open circuits. It is desired for the amplifier to have a drain current ip = 1.5 mA a and vgs = 0.9 V. (a) Find the required physical ratio Сс HH + Vps + = VGS VGS Di w R82 Rs CB 6 required for the MOSFET, if Un Cox = 0.4 mA/V2 = HO (b) Find the drain current id
