H this circuit is for Question 14-15 miter coninlin Two amplifiers A and B are cascaded through capacitor coupling as

Post by answerhappygod »

H This Circuit Is For Question 14 15 Miter Coninlin Two Amplifiers A And B Are Cascaded Through Capacitor Coupling As 1
H This Circuit Is For Question 14 15 Miter Coninlin Two Amplifiers A And B Are Cascaded Through Capacitor Coupling As 1 (8.86 KiB) Viewed 40 times
H This Circuit Is For Question 14 15 Miter Coninlin Two Amplifiers A And B Are Cascaded Through Capacitor Coupling As 2
H This Circuit Is For Question 14 15 Miter Coninlin Two Amplifiers A And B Are Cascaded Through Capacitor Coupling As 2 (15.49 KiB) Viewed 40 times
H this circuit is for Question 14-15 miter coninlin

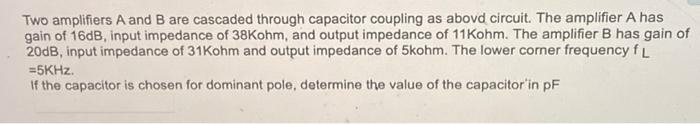

Two amplifiers A and B are cascaded through capacitor coupling as abovd circuit. The amplifier A has gain of 16dB, input impedance of 38Kohm, and output impedance of 11 Kohm. The amplifier B has gain of 20dB, input impedance of 31 Kohm and output impedance of 5kohm. The lower corner frequency fL =5KHz. If the capacitor is chosen for dominant pole, determine the value of the capacitor'in PF
