7. Design a passive RLC band-stop filter designed to block a microphone feedback squeal at a frequency of 400Hz. The ban

Post by answerhappygod »

7 Design A Passive Rlc Band Stop Filter Designed To Block A Microphone Feedback Squeal At A Frequency Of 400hz The Ban 1
7 Design A Passive Rlc Band Stop Filter Designed To Block A Microphone Feedback Squeal At A Frequency Of 400hz The Ban 1 (26.46 KiB) Viewed 44 times

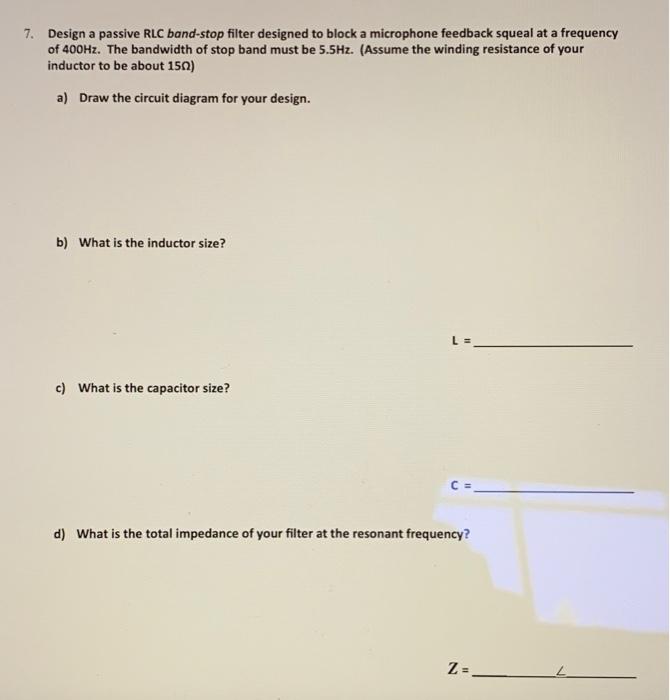

7. Design a passive RLC band-stop filter designed to block a microphone feedback squeal at a frequency of 400Hz. The bandwidth of stop band must be 5.5Hz. (Assume the winding resistance of your inductor to be about 150) a) Draw the circuit diagram for your design. b) What is the inductor size? LE c) What is the capacitor size? C = d) What is the total impedance of your filter at the resonant frequency? Z=
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
