Information about a single phase transformer is as follows: The core of the transformer is mantel type and the thickness

[answerhappygod]

Information About A Single Phase Transformer Is As Follows The Core Of The Transformer Is Mantel Type And The Thickness 1 (76.75 KiB) Viewed 42 times

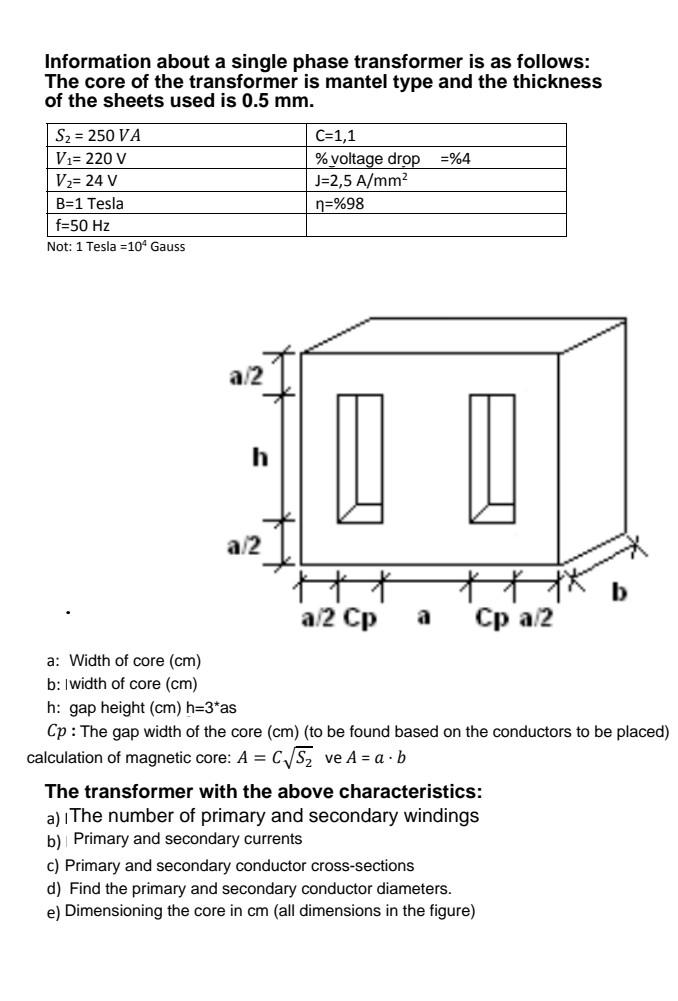

Information about a single phase transformer is as follows: The core of the transformer is mantel type and the thickness of the sheets used is 0.5 mm. S2 = 250 VA Vi= 220 V V = 24 V B=1 Tesla f=50 Hz Not: 1 Tesla = 104 Gauss C=1,1 % voltage drop =%4 J=2,5 A/mm² n=%98 a 2 h a 2 t a2 CP a CP a2 a: Width of core (cm) b: width of core (cm) h: gap height (cm) h=3*as Cp: The gap width of the core (cm) (to be found based on the conductors to be placed) calculation of magnetic core: A = C/S2 ve A = a.b The transformer with the above characteristics: a) The number of primary and secondary windings b) Primary and secondary currents c) Primary and secondary conductor cross-sections d) Find the primary and secondary conductor diameters. e) Dimensioning the core in cm (all dimensions in the figure)
