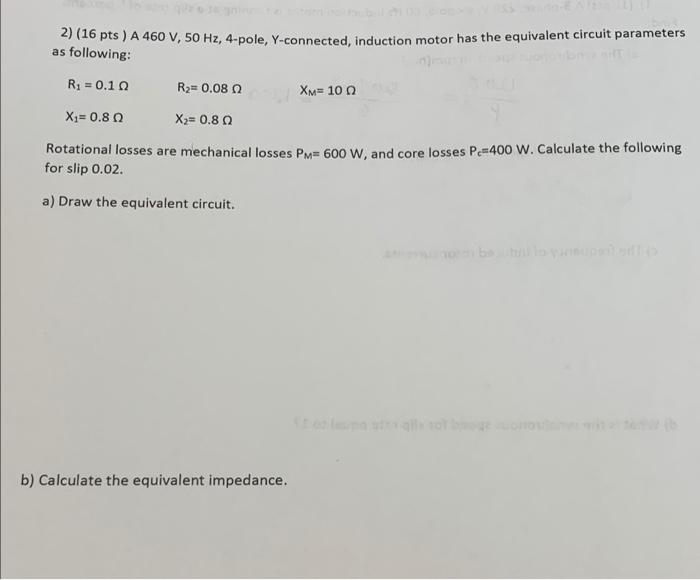

2) (16 pts) A 460 V, 50 Hz, 4-pole, Y-connected, induction motor has the equivalent circuit parameters as following: R2 = 0.1 R = 0.08 X=100 X = 0.8 X = 0.80 Rotational losses are mechanical losses Pm= 600 W, and core losses Pe=400 W. Calculate the following for slip 0.02. a) Draw the equivalent circuit. b) Calculate the equivalent impedance.

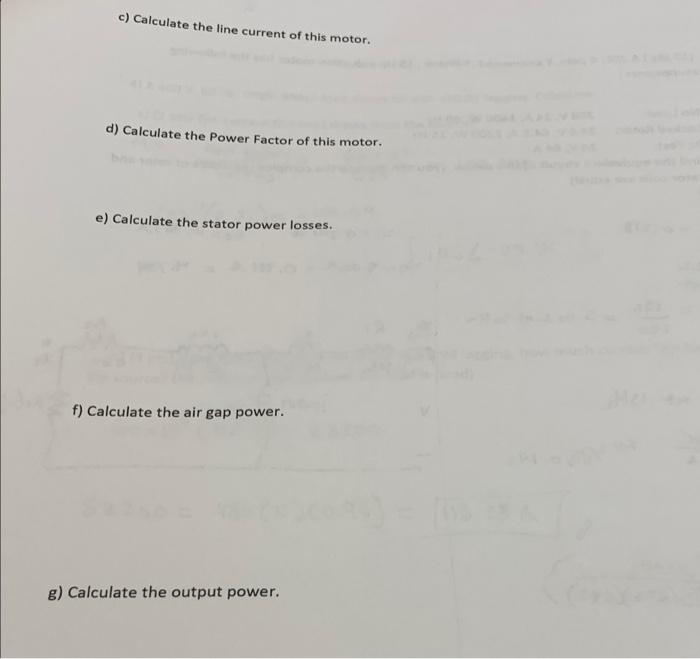

c) Calculate the line current of this motor. d) Calculate the Power Factor of this motor. e) Calculate the stator power losses. f) Calculate the air gap power. g) Calculate the output power.
