Find the phase angle of the current across the RL circuit?
Find The Phase Angle Of The Current Across The Rl Circuit 1 (97.69 KiB) Viewed 51 times
Find The Phase Angle Of The Current Across The Rl Circuit 2 (67.57 KiB) Viewed 51 times

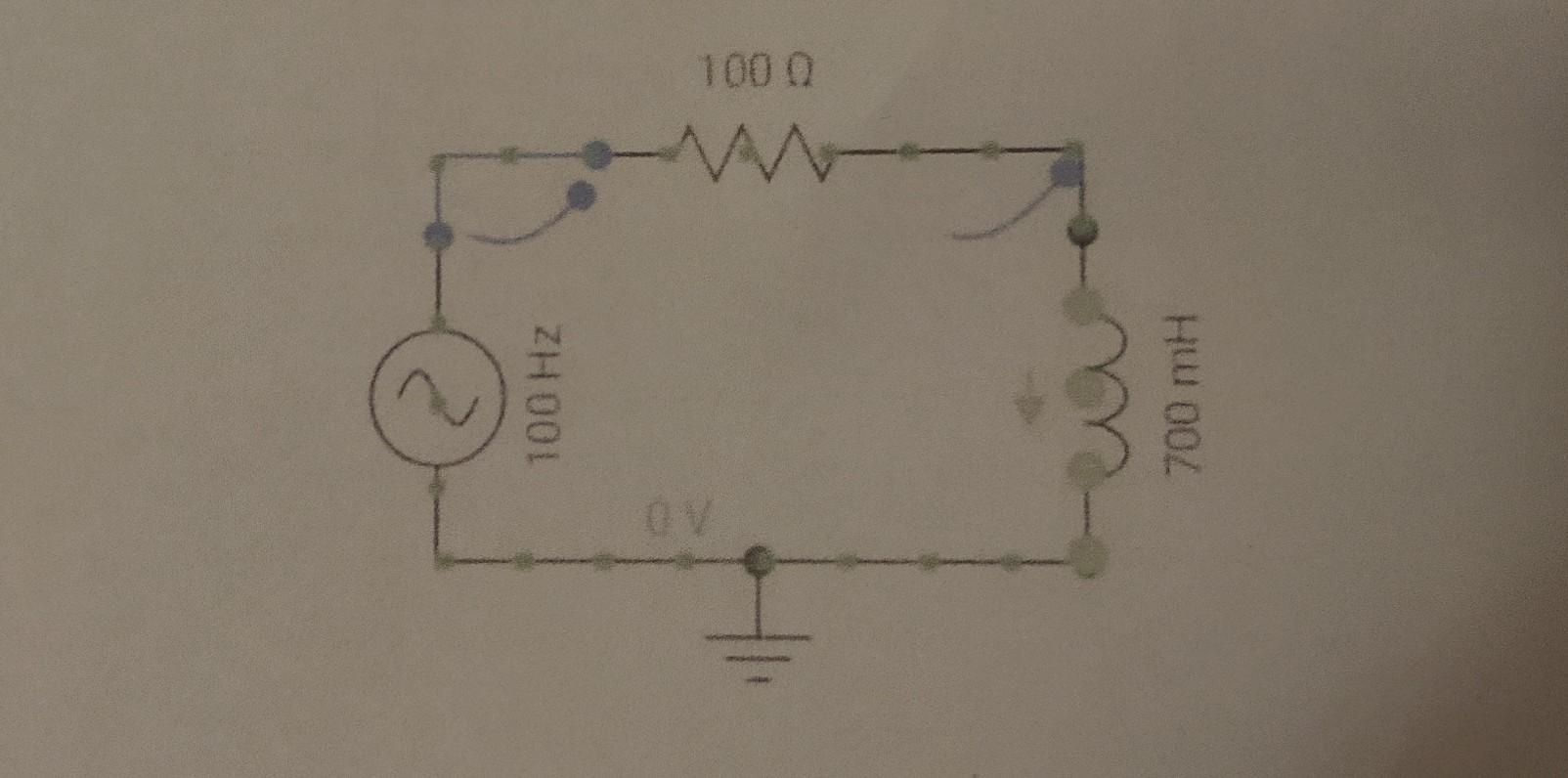

100 HZ 0 001 - 700 m

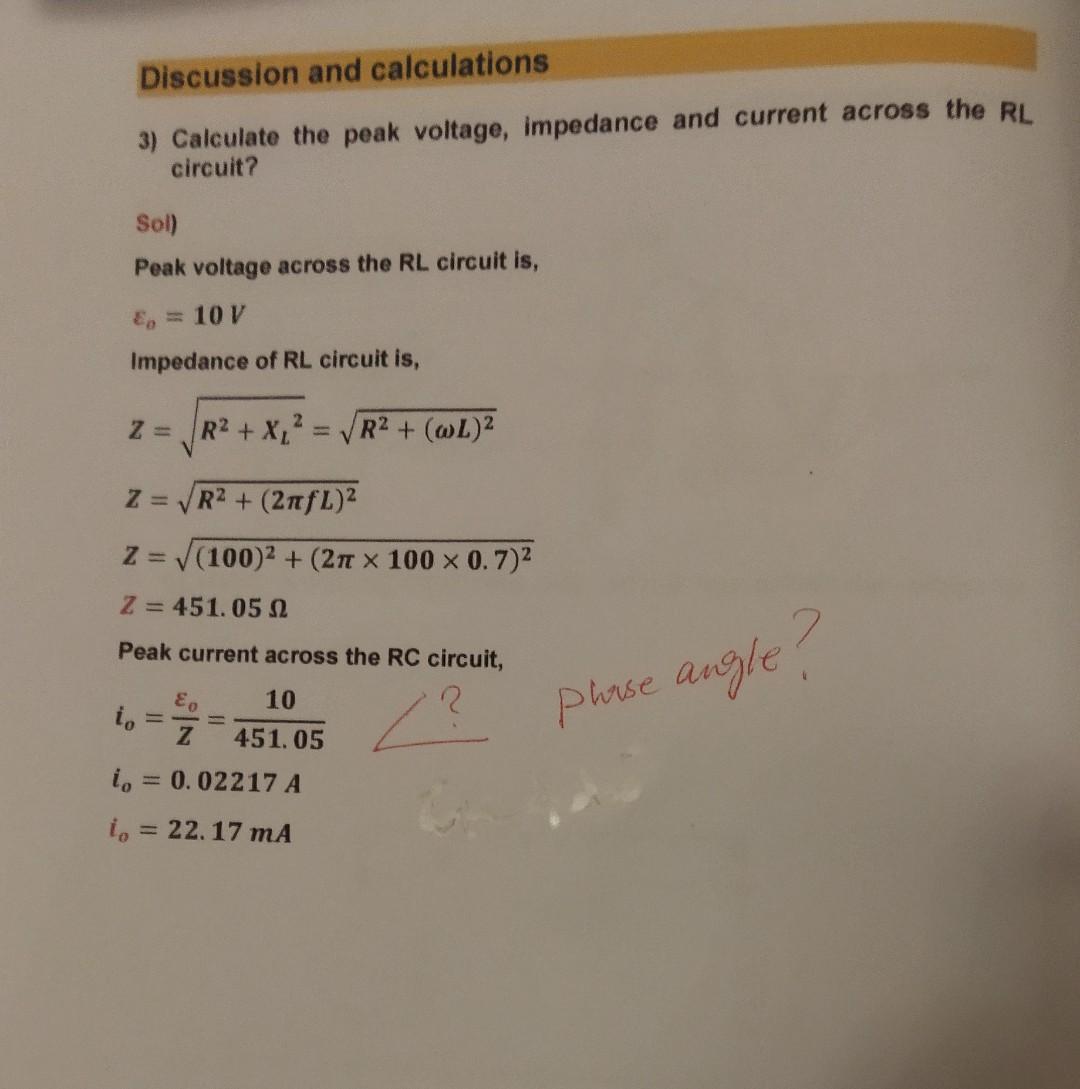

Discussion and calculations 3) Calculate the peak voltage, impedance and current across the RL circuit? Sol) Peak voltage across the RL circuit is, E = 10 V Impedance of RL circuit is, z = R2 + x 2 = R2 + (WL)2 Z = R2 + (27fL)2 Z= (100)2 + (210 x 100 x 0.7)2 Z = 451.05 22 Peak current across the RC circuit, 10 E. Z i. <? plase angle 451.05 0.02217 A in = 22.17 mA
