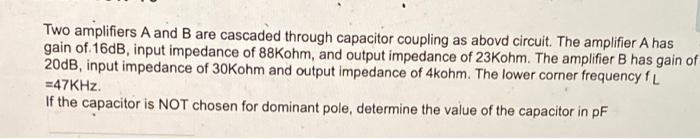

Two amplifiers A and B are cascaded through capacitor coupling as abovd circuit. The amplifier A has gain of. 16dB, input impedance of 88Kohm, and output impedance of 23Kohm. The amplifier B has gain of 20dB, input impedance of 30Kohm and output impedance of 4kohm. The lower corner frequency fl =47KHz. If the capacitor is NOT chosen for dominant pole, determine the value of the capacitor in PF

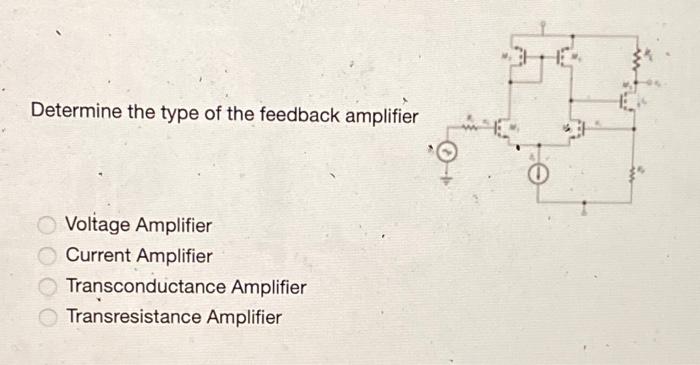

Determine the type of the feedback amplifier Voltage Amplifier Current Amplifier Transconductance Amplifier Transresistance Amplifier
