8.28. In an attempt to create a circuit with a midband voltage gain, vo Ay = Us of twenty (20), the circuit shown was cr
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
8.28. In an attempt to create a circuit with a midband voltage gain, vo Ay = Us of twenty (20), the circuit shown was cr

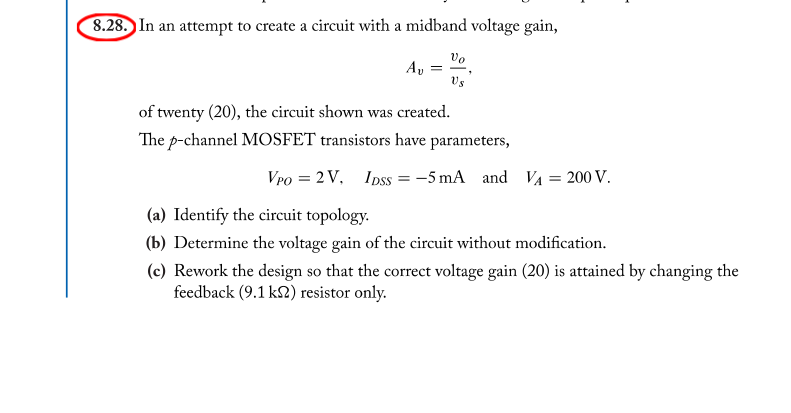

8.28. In an attempt to create a circuit with a midband voltage gain, vo Ay = Us of twenty (20), the circuit shown was created. The p-channel MOSFET transistors have parameters, Vpo = 2 V, Iss = -5mA and VA = 200 V. (a) Identify the circuit topology. (b) Determine the voltage gain of the circuit without modification. (c) Rework the design so that the correct voltage gain (20) is attained by changing the feedback (9.1 k 2) resistor only.
