1) A three phase , 4-pole , 60 Hz, Y-connected induction motor is rated at 10 hp, 208 V, 1755 rpm. The motor parameters
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
1) A three phase , 4-pole , 60 Hz, Y-connected induction motor is rated at 10 hp, 208 V, 1755 rpm. The motor parameters

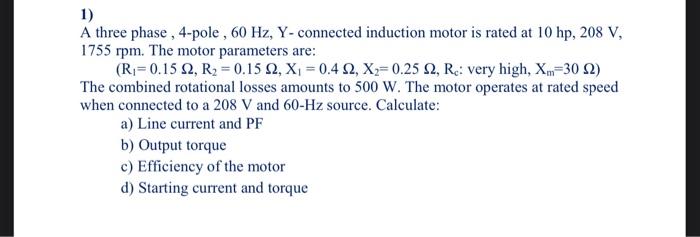

1) A three phase , 4-pole , 60 Hz, Y-connected induction motor is rated at 10 hp, 208 V, 1755 rpm. The motor parameters are: (R=0.152, R2 = 0.152, X = 0.422, X=0.25 2. Re: very high, X.m=302) The combined rotational losses amounts to 500 W. The motor operates at rated speed when connected to a 208 V and 60-Hz source. Calculate: a) Line current and PF b) Output torque c) Efficiency of the motor d) Starting current and torque
