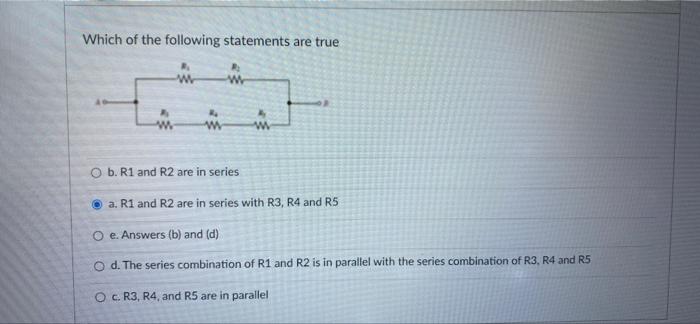

Which of the following statements are true w w w b. R1 and R2 are in series a. R1 and R2 are in series with R3, R4 and R5 O e. Answers (b) and (d) O d. The series combination of R1 and R2 is in parallel with the series combination of R3, R4 and R5 O c. R3, R4, and R5 are in parallel

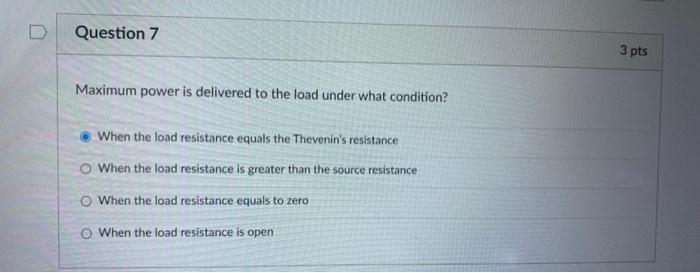

Question 7 3 pts Maximum power is delivered to the load under what condition? When the load resistance equals the Thevenin's resistance When the load resistance is greater than the source resistance O When the load resistance equals to zero When the load resistance is open
