Using circuit analysis techniques, find the Thevenin equivalent of the circuit below with respect to terminals aa -bb: (

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Using circuit analysis techniques, find the Thevenin equivalent of the circuit below with respect to terminals aa -bb: (

Post by answerhappygod »

Using Circuit Analysis Techniques Find The Thevenin Equivalent Of The Circuit Below With Respect To Terminals Aa Bb 1
Using Circuit Analysis Techniques Find The Thevenin Equivalent Of The Circuit Below With Respect To Terminals Aa Bb 1 (254.22 KiB) Viewed 61 times

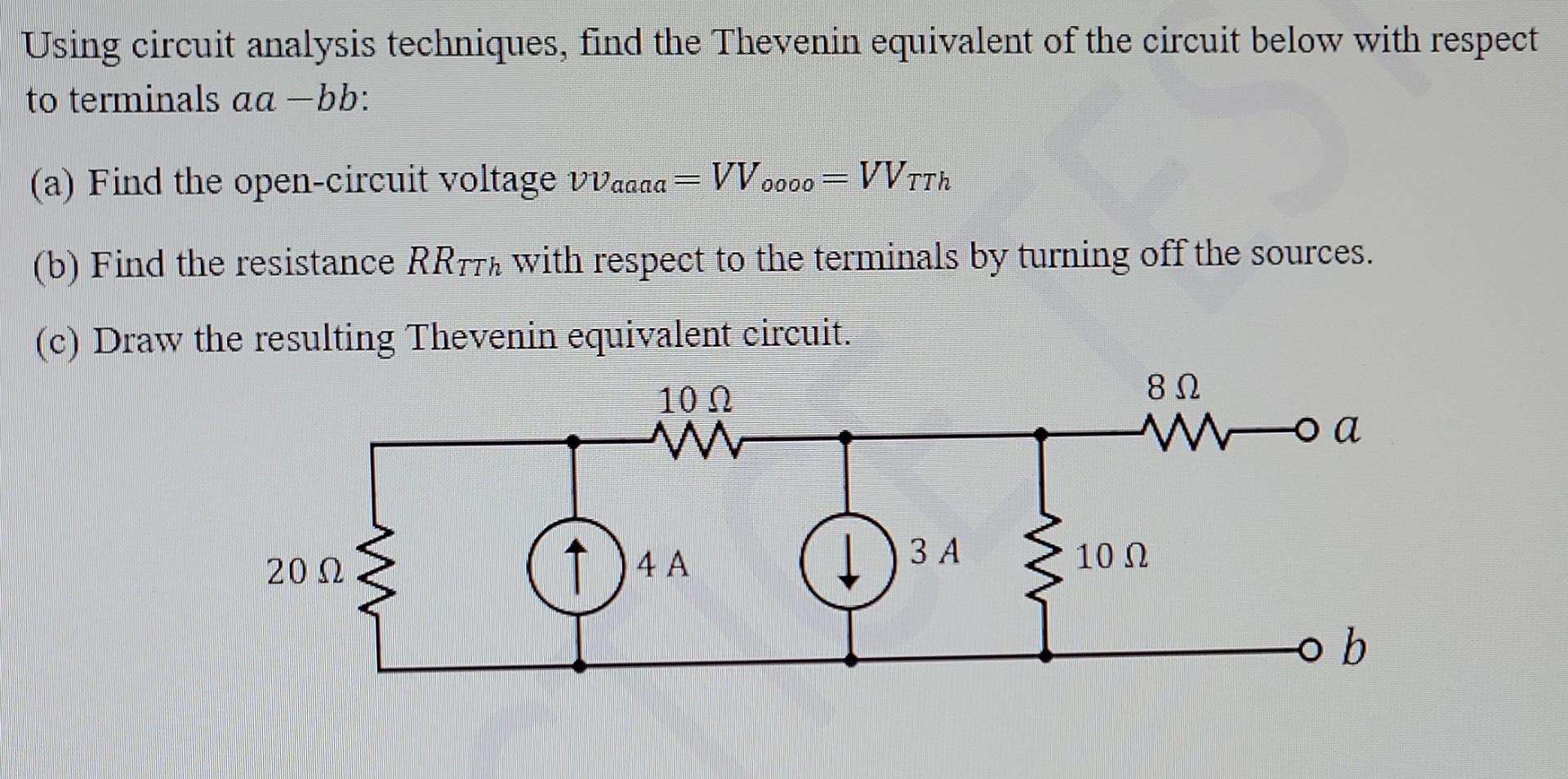

Using circuit analysis techniques, find the Thevenin equivalent of the circuit below with respect to terminals aa -bb: (a) Find the open-circuit voltage VVaaaa=VV0000=VVtTh (b) Find the resistance RRTTh with respect to the terminals by turning off the sources. (c) Draw the resulting Thevenin equivalent circuit. 812 10Ω w Woa ЗА 1 4 A 2012 © 10 Ω ob
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
Top
Post Reply

Return to “Archived Questions & Answers”
