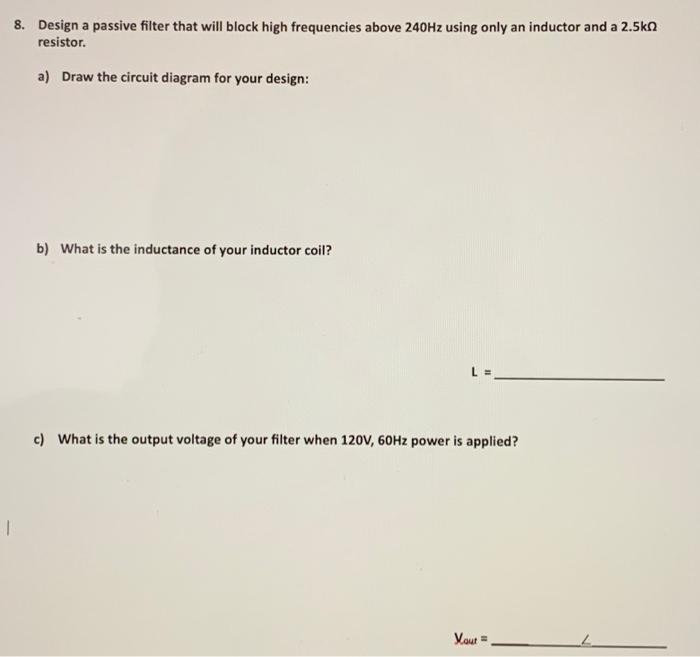

8. Design a passive filter that will block high frequencies above 240Hz using only an inductor and a 2.5kn resistor. a) Draw the circuit diagram for your design: b) What is the inductance of your inductor coil? c) What is the output voltage of your filter when 120V, 60Hz power is applied? Your

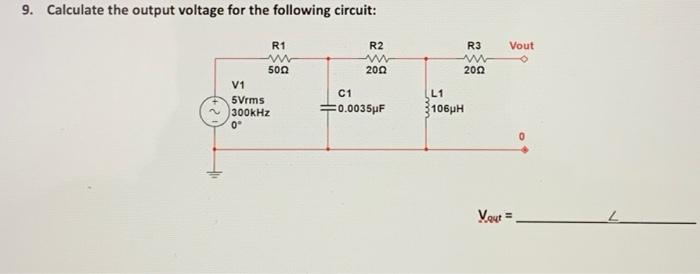

9. Calculate the output voltage for the following circuit: R1 R2 R3 Vout 209 500 V1 5Vrms 300kHz 0° 2002 C1 -0.0035pF L1 106μΗ Veut =
