For the circuit shown in Figure 2, let RS = 0, CB = 0, RC = RL = 2 k , Vcc = Vee=5 V, B = 100, VBE (on)=0.7 V, and VA =

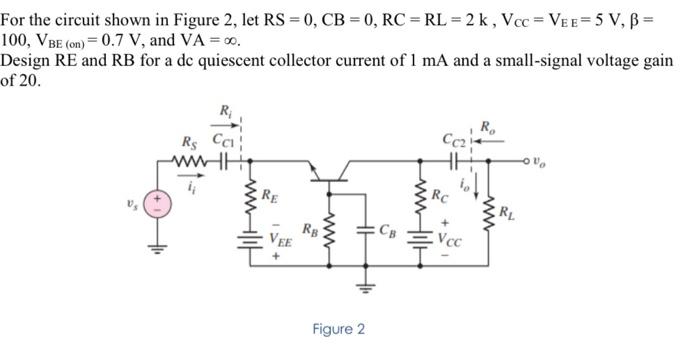

For the circuit shown in Figure 2, let RS = 0, CB = 0, RC = RL = 2 k , Vcc = Vee=5 V, B = 100, VBE (on)=0.7 V, and VA = 0. Design RE and RB for a de quiescent collector current of 1 mA and a small-signal voltage gain of 20. R R. Rs Cal RE RC will www RL VEE RB HE Св V cc w Figure 2
