Please note: Do not write the answer only. You need to show your
work. Thank you!
This is for question 6, but question 6 refers to question 5
which is why it is included.
Please Note Do Not Write The Answer Only You Need To Show Your Work Thank You This Is For Question 6 But Question 6 1 (80.72 KiB) Viewed 46 times

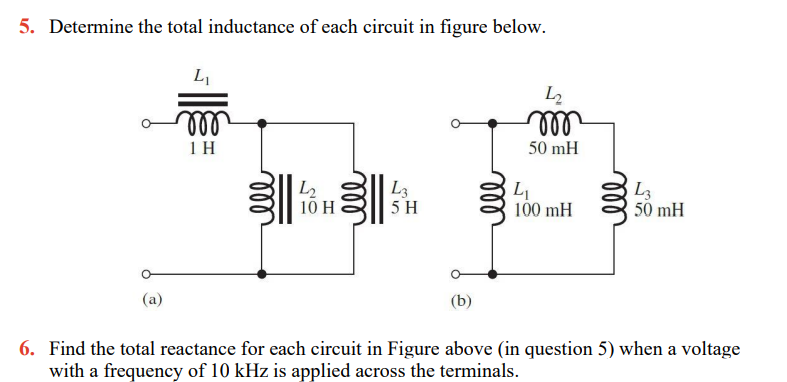

5. Determine the total inductance of each circuit in figure below. L mm 1 H L2 mm 50 mH 31 L2 10 H ell L3 5H L 100 mH ell L 50 mH (a) (b) 6. Find the total reactance for each circuit in Figure above (in question 5) when a voltage with a frequency of 10 kHz is applied across the terminals.
