QUESTION 16 Two amplifiers A and B are cascaded through capacitor coupling as abovd circuit. The amplifier A has gain of

Post by answerhappygod »

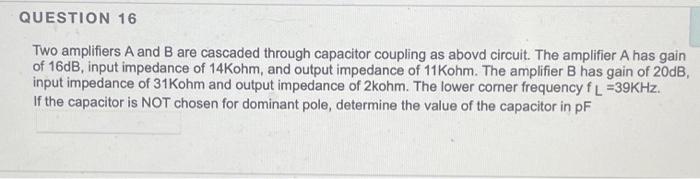

Question 16 Two Amplifiers A And B Are Cascaded Through Capacitor Coupling As Abovd Circuit The Amplifier A Has Gain Of 1
Question 16 Two Amplifiers A And B Are Cascaded Through Capacitor Coupling As Abovd Circuit The Amplifier A Has Gain Of 1 (20.78 KiB) Viewed 51 times
QUESTION 16 Two amplifiers A and B are cascaded through capacitor coupling as abovd circuit. The amplifier A has gain of 16dB, input impedance of 14Kohm, and output impedance of 11 Kohm. The amplifier B has gain of 20dB, input impedance of 31 Kohm and output impedance of 2kohm. The lower corner frequency fl =39KHz. If the capacitor is NOT chosen for dominant pole, determine the value of the capacitor in PF
