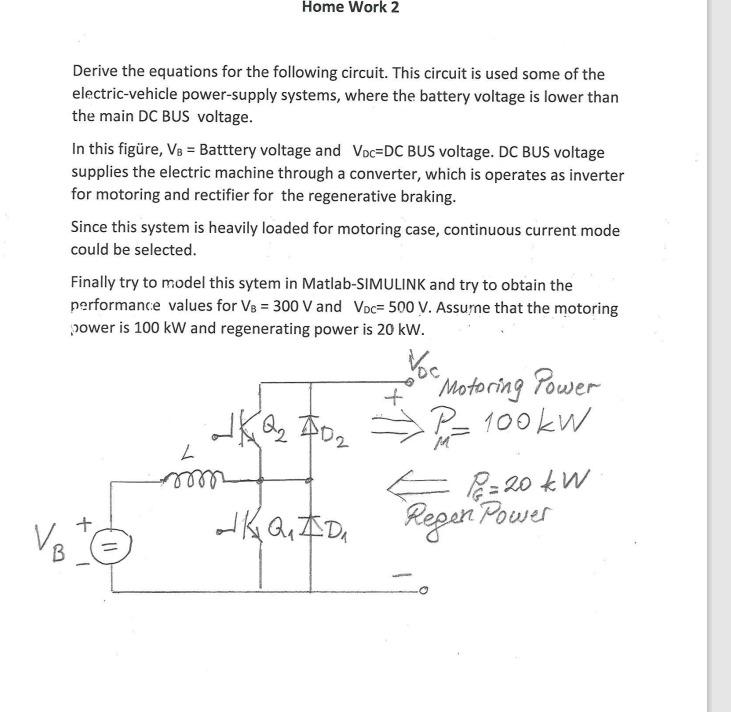

Home Work 2 Derive the equations for the following circuit. This circuit is used some of the electric-vehicle power-supply systems, where the battery voltage is lower than the main DC BUS voltage. In this figüre, V8 = Batttery voltage and Voc=DC BUS voltage. DC BUS voltage supplies the electric machine through a converter, which is operates as inverter for motoring and rectifier for the regenerative braking. Since this system is heavily loaded for motoring case, continuous current mode could be selected. Finally try to model this sytem in Matlab-SIMULINK and try to obtain the performance values for V8 = 300 V and Voc= 500 V. Assume that the motoring power is 100 kW and regenerating power is 20 kW. Voc + P= 100kW 2 om € " Motoring Power -К, JKQ 802 -20 kW Regen Power + B od K Q & م-
