Example • A 100-kVA 8000/277 V distribution transformer has the following resistance and reactances: • Req = 0.011.2 and

Post by answerhappygod »

Example A 100 Kva 8000 277 V Distribution Transformer Has The Following Resistance And Reactances Req 0 011 2 And 1
Example A 100 Kva 8000 277 V Distribution Transformer Has The Following Resistance And Reactances Req 0 011 2 And 1 (30.23 KiB) Viewed 53 times

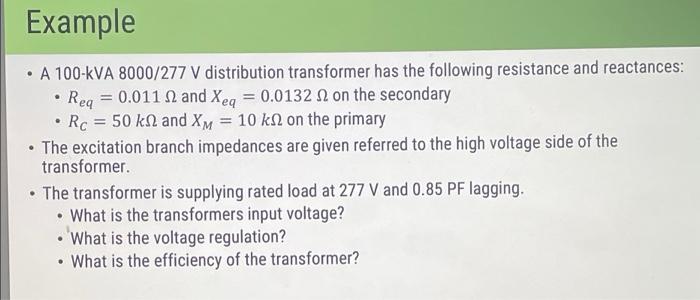

Example • A 100-kVA 8000/277 V distribution transformer has the following resistance and reactances: • Req = 0.011.2 and Xeq = 0.0132 2 on the secondary Rc = 50 kN and XM = 10 ks on the primary The excitation branch impedances are given referred to the high voltage side of the transformer. • The transformer is supplying rated load at 277 V and 0.85 PF lagging. • What is the transformers input voltage? • What is the voltage regulation? What is the efficiency of the transformer?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
