HII (10pts) Consider the circuit shown below. A small AC signal with magnitude 2.5mV (AC coupled) is applied to the seri

Post by answerhappygod »

Hii 10pts Consider The Circuit Shown Below A Small Ac Signal With Magnitude 2 5mv Ac Coupled Is Applied To The Seri 1
Hii 10pts Consider The Circuit Shown Below A Small Ac Signal With Magnitude 2 5mv Ac Coupled Is Applied To The Seri 1 (31.07 KiB) Viewed 45 times

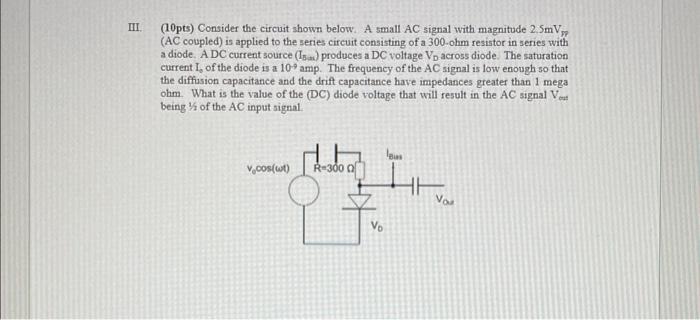

HII (10pts) Consider the circuit shown below. A small AC signal with magnitude 2.5mV (AC coupled) is applied to the series circuit consisting of a 300 ohm resistor in series with a diode. A DC current source (Is) produces a DC voltage Vp across diode. The saturation current 1 of the diode is a 10 amp. The frequency of the AC signal is low enough so that the diffusion capacitance and the drift capacitance have impedances greater than 1 mega ohm. What is the value of the (DC) diode voltage that will result in the AC signal Vos being of the AC input signal Theta ir le V,00() R-380 Vos Vo
