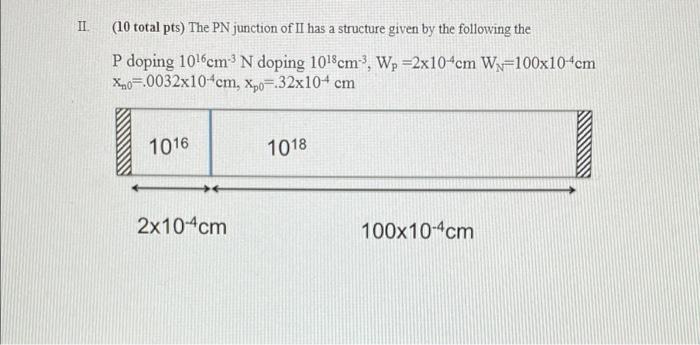

II. (10 total pts) The PN junction of II has a structure given by the following the P doping 1016cm' N doping 1018cm", Wp =2x104cm Wy=100x104cm Xno=.0032x104cm, Xpo=.32x104 cm 1016 1018 → 2x104cm 100x10-4cm

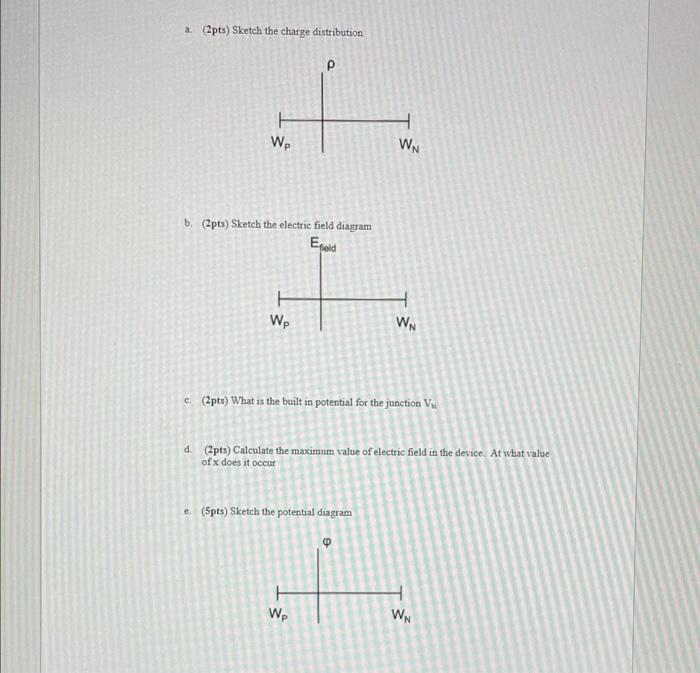

a (2pts) Sketch the charge distribution H We WN b. (2pts) Sketch the electric field diagram Epold Wp WN c (2pts) What is the built in potential for the junction V d. (2pts) Calculate the maximum value of electric field in the device. At what value of x does it occur (5pts) Sketch the potential diagram OP Wp WN
