4. Fig (a) shows C = 500 pF, RL = 1502, diode forward voltage is (VA) 0.7 V, and AC source (Vin) is 120 Vrms at 60 Hz; d
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
4. Fig (a) shows C = 500 pF, RL = 1502, diode forward voltage is (VA) 0.7 V, and AC source (Vin) is 120 Vrms at 60 Hz; d

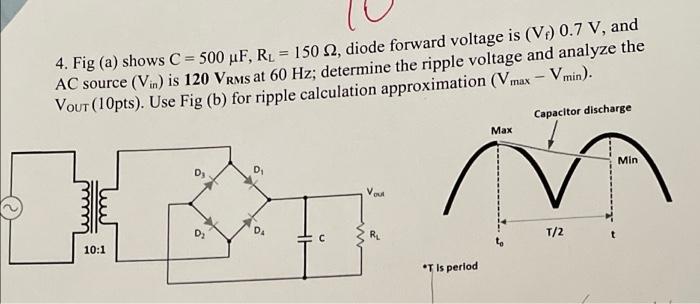

4. Fig (a) shows C = 500 pF, RL = 1502, diode forward voltage is (VA) 0.7 V, and AC source (Vin) is 120 Vrms at 60 Hz; determine the ripple voltage and analyze the Vout (10pts). Use Fig (b) for ripple calculation approximation (Vmax - V min). Capacitor discharge Max Min D; D V out D. DA RE T/2 10:1 *T is period
