A wireless local area network application requires a local oscillator operating at 2.4 GHz. You are required to design a

Post by answerhappygod »

A Wireless Local Area Network Application Requires A Local Oscillator Operating At 2 4 Ghz You Are Required To Design A 1
A Wireless Local Area Network Application Requires A Local Oscillator Operating At 2 4 Ghz You Are Required To Design A 1 (67.13 KiB) Viewed 51 times

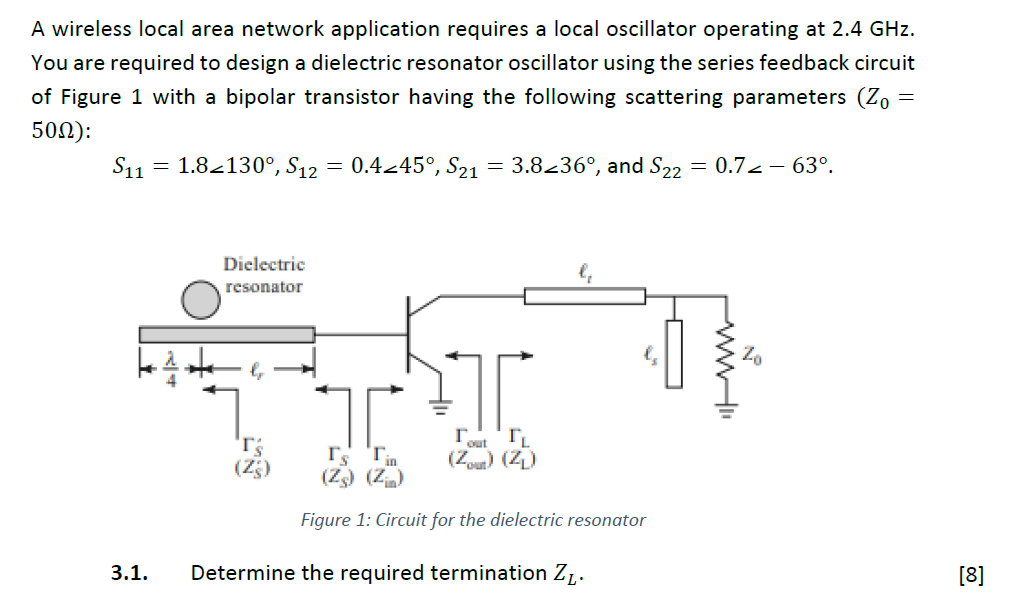

A wireless local area network application requires a local oscillator operating at 2.4 GHz. You are required to design a dielectric resonator oscillator using the series feedback circuit of Figure 1 with a bipolar transistor having the following scattering parameters (20 = 50.12): S11 = 1.82130°, S12 = 0.4_45°, S21 = 3.8236°, and S22 = 0.7<- 63º. = Dielectric resonator O Zo €, T T Is 'Tin Tout 'TL (Zout) (ZD) (Z) 23 (2 Figure 1: Circuit for the dielectric resonator 3.1. Determine the required termination Zl. [8]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
