Question 1 20 V RD 22uF R1 w MPF 102 22uF 22uF 0.353 V/1 kHz/1 Deg R2 Rs Figure 1 From the data sheet K = 3.24 mA/V2, VI

Post by answerhappygod »

Question 1 20 V Rd 22uf R1 W Mpf 102 22uf 22uf 0 353 V 1 Khz 1 Deg R2 Rs Figure 1 From The Data Sheet K 3 24 Ma V2 Vi 1
Question 1 20 V Rd 22uf R1 W Mpf 102 22uf 22uf 0 353 V 1 Khz 1 Deg R2 Rs Figure 1 From The Data Sheet K 3 24 Ma V2 Vi 1 (70.79 KiB) Viewed 45 times

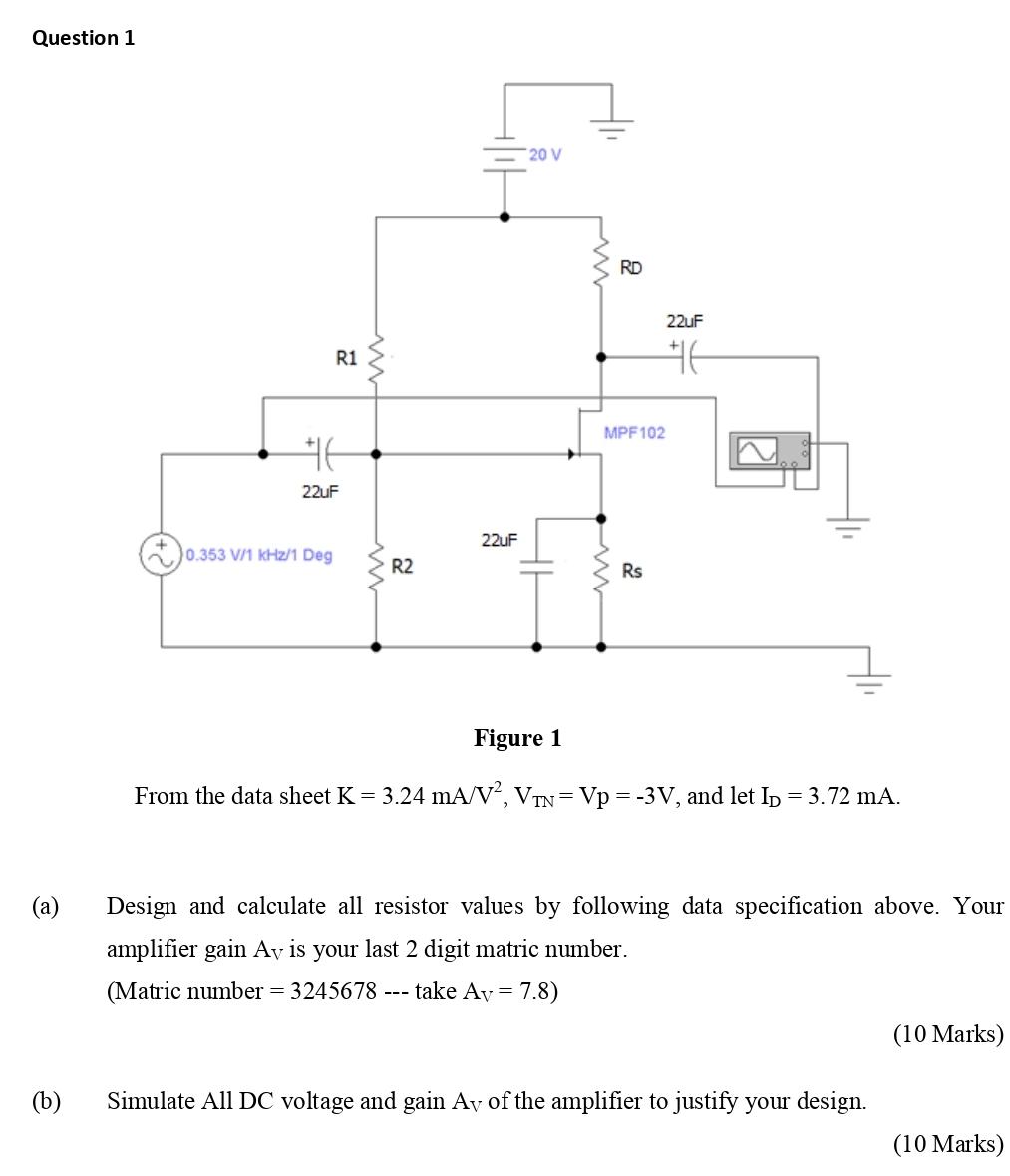

Question 1 20 V RD 22uF R1 w MPF 102 22uF 22uF 0.353 V/1 kHz/1 Deg R2 Rs Figure 1 From the data sheet K = 3.24 mA/V2, VIN=Vp =-3V, and let ID = 3.72 mA. = (a) Design and calculate all resistor values by following data specification above. Your amplifier gain Av is your last 2 digit matric number. (Matric number = 3245678 --- take Av= 7.8) (10 Marks) = (b) Simulate All DC voltage and gain Av of the amplifier to justify your design. (10 Marks)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
