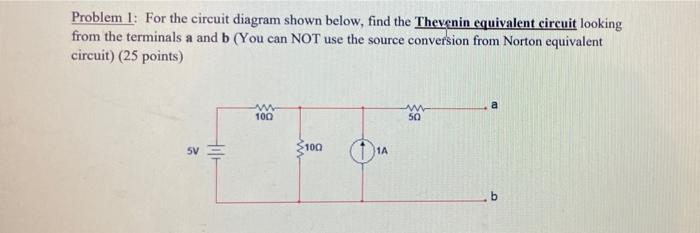

Problem 1: For the circuit diagram shown below, find the Thevenin equivalent circuit looking from the terminals a and b (You can NOT use the source conversion from Norton equivalent circuit) (25 points) w 100 w 50 5V 100 2 1A b

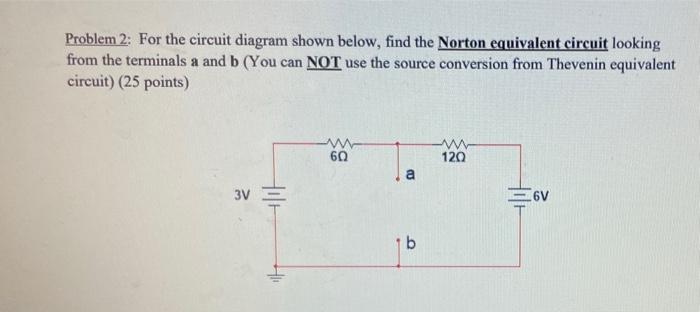

Problem 2: For the circuit diagram shown below, find the Norton equivalent circuit looking from the terminals a and b (You can NOT use the source conversion from Thevenin equivalent circuit) (25 points) a 60 W- 120 a 3V - —6V b
