21 SPRING 22 HWII Question 4 (14 pts.): a. (14 pts.) Given the sequential logic circuit below, complete the timing wavef

[answerhappygod]

21 Spring 22 Hwii Question 4 14 Pts A 14 Pts Given The Sequential Logic Circuit Below Complete The Timing Wavef 1 (75.72 KiB) Viewed 57 times

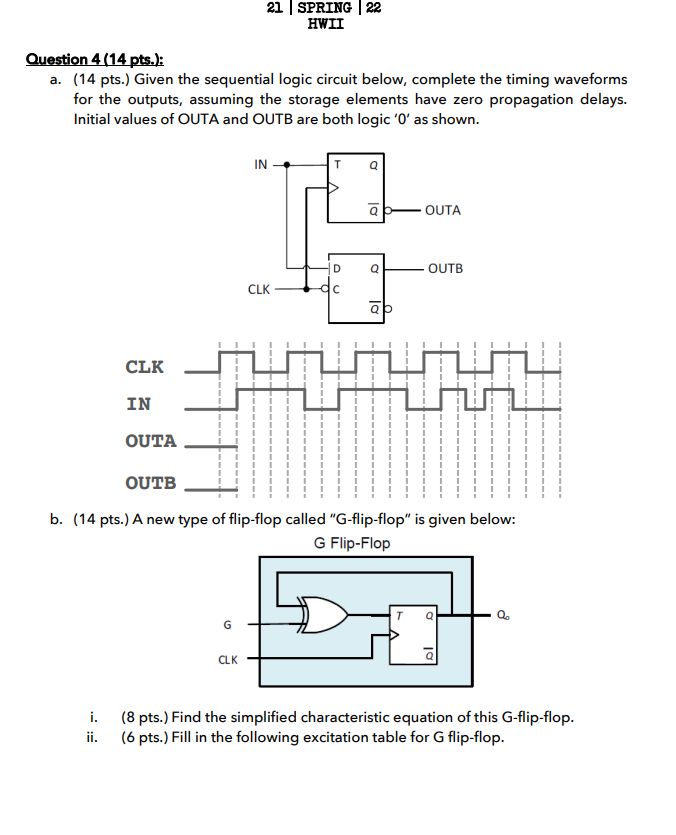

21 SPRING 22 HWII Question 4 (14 pts.): a. (14 pts.) Given the sequential logic circuit below, complete the timing waveforms for the outputs, assuming the storage elements have zero propagation delays. Initial values of OUTA and OUTB are both logic 'O' as shown. IN +1 OUTA D Q OUTB CLK dc aþ CLK IN OUTA OUTB b. (14 pts.) A new type of flip-flop called "G-flip-flop" is given below: G Flip-Flop Q. G CLK i. (8 pts.) Find the simplified characteristic equation of this G-flip-flop. ii. (6 pts.) Fill in the following excitation table for G flip-flop.
