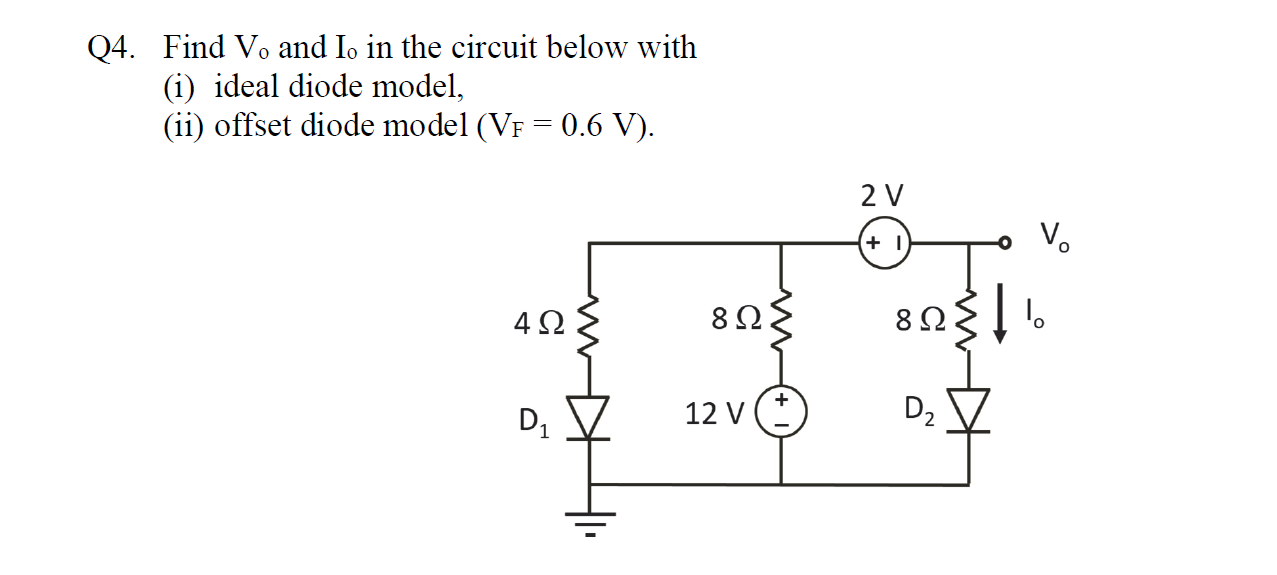

Q4. Find Vo and Io in the circuit below with (i) ideal diode model, (ii) offset diode model (VF = 0.6 V). 2 V +1 V. w 42
