2. The boost converter of the third generation Toyota Prius has a battery with a nominal voltage of 288 V which is stepp

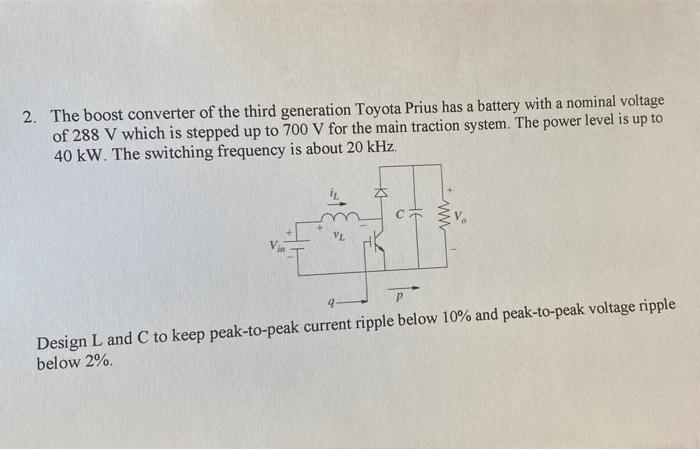

2. The boost converter of the third generation Toyota Prius has a battery with a nominal voltage of 288 V which is stepped up to 700 V for the main traction system. The power level is up to 40 kW. The switching frequency is about 20 kHz. P Design L and C to keep peak-to-peak current ripple below 10% and peak-to-peak voltage ripple below 2%
