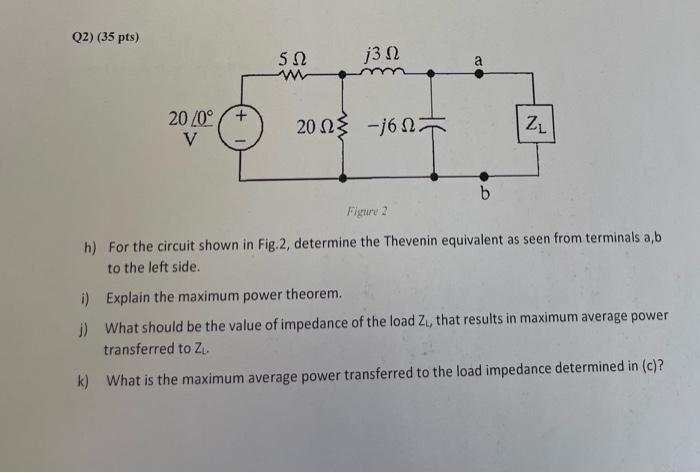

Q2) (35 pts) 512 j312 a 20/0° V *** 20 Ωξ -j6 Ω ZL Figure 2 h) For the circuit shown in Fig.2, determine the Thevenin equivalent as seen from terminals a,b to the left side. i) Explain the maximum power theorem. 1) What should be the value of impedance of the load Z, that results in maximum average power transferred to Z k) What is the maximum average power transferred to the load impedance determined in (c)?
