BONUS QUESTION (7.5 POINTS) Chapter 12.5 The following is a low-pass active filter. The input frequency is W. Given that

Post by answerhappygod »

Bonus Question 7 5 Points Chapter 12 5 The Following Is A Low Pass Active Filter The Input Frequency Is W Given That 1
Bonus Question 7 5 Points Chapter 12 5 The Following Is A Low Pass Active Filter The Input Frequency Is W Given That 1 (31.91 KiB) Viewed 44 times

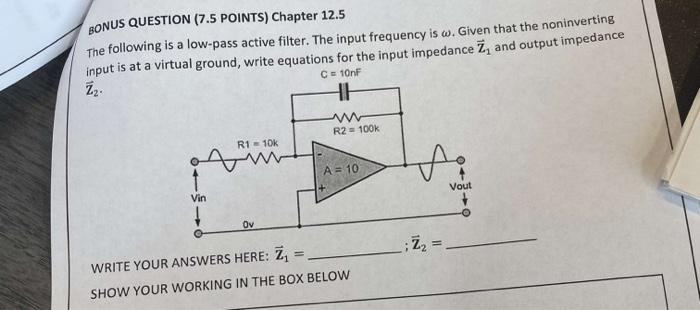

BONUS QUESTION (7.5 POINTS) Chapter 12.5 The following is a low-pass active filter. The input frequency is W. Given that the noninverting input is at a virtual ground, write equations for the input impedance ž, and output impedance Zz. C = 10nF R2 = 100k R1 = 10K to A = 10 1 Vout Vin Ov .; Z2 = WRITE YOUR ANSWERS HERE: Ž SHOW YOUR WORKING IN THE BOX BELOW
