Figure in bracket ( next to each question indicates marks for that question. Use activation voltage V,(diode) = 0.6V, V,

[answerhappygod]

Figure In Bracket Next To Each Question Indicates Marks For That Question Use Activation Voltage V Diode 0 6v V 1 (36.35 KiB) Viewed 50 times

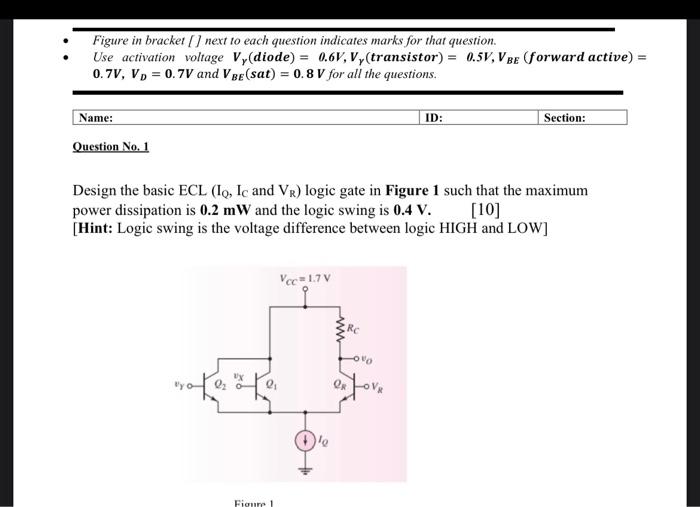

Figure in bracket ( next to each question indicates marks for that question. Use activation voltage V,(diode) = 0.6V, V,(transistor) = 0.5V, V Be (forward active) = 0.7V, Vp = 0.7V and V Be(sat) = 0.8 V for all the questions. = Name: ID: Section: Question No. 1 Design the basic ECL (10, Ic and Vr) logic gate in Figure 1 such that the maximum power dissipation is 0.2 mW and the logic swing is 0.4 V. [10] [Hint: Logic swing is the voltage difference between logic HIGH and LOW] Vcc=1.7V WWW Rc vo Keret 2 Figure 1
