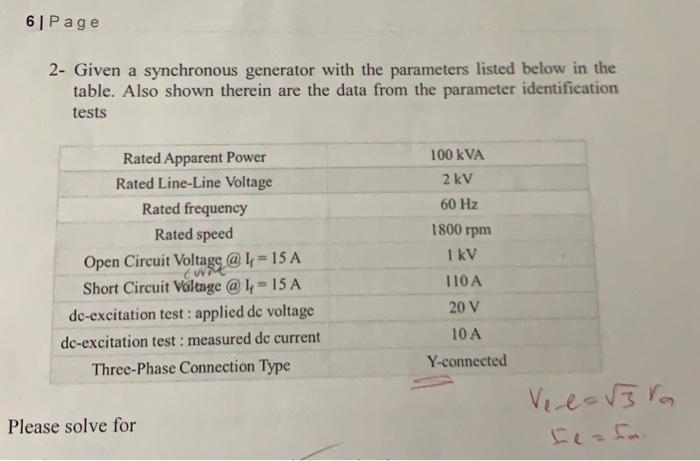

6 Page 2- Given a synchronous generator with the parameters listed below in the table. Also shown therein are the data from the parameter identification tests 100 KVA 2 kV 60 Hz 1800 rpm Rated Apparent Power Rated Line-Line Voltage Rated frequency Rated speed Open Circuit Voltage @ I = 15 A Short Circuit Voltage @ I, - 15 A dc-excitation test : applied de voltage dc-excitation test : measured dc current Three-Phase Connection Type I kv TIOA 20 V 10 A Y-connected Veera Please solve for

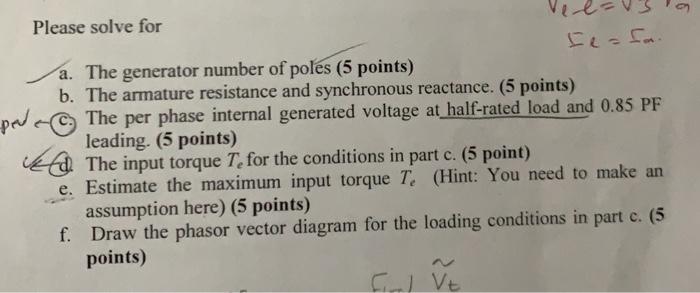

Please solve for a. The generator number of poles (5 points) b. The armature resistance and synchronous reactance. (5 points) pede C. The per phase internal generated voltage at half-rated load and 0.85 PF leading. (5 points) ist The input torque T. for the conditions in part c. (5 point) e. Estimate the maximum input torque Te (Hint: You need to make an assumption here) (5 points) f. Draw the phasor vector diagram for the loading conditions in part c. (5 points) Find Vt
