2) Given the following Non-Inverting Comparator Circuit (the Op-Amp saturation voltages Vsat-/-are +/- 13 V): +15V R1 12

Post by answerhappygod »

2 Given The Following Non Inverting Comparator Circuit The Op Amp Saturation Voltages Vsat Are 13 V 15v R1 12 1
2 Given The Following Non Inverting Comparator Circuit The Op Amp Saturation Voltages Vsat Are 13 V 15v R1 12 1 (34.36 KiB) Viewed 50 times

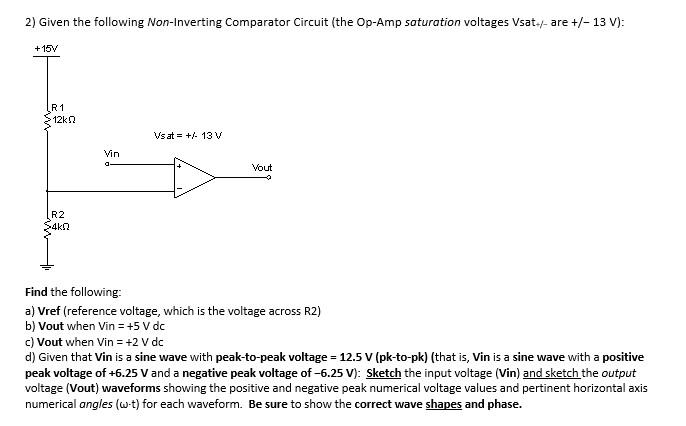

2) Given the following Non-Inverting Comparator Circuit (the Op-Amp saturation voltages Vsat-/-are +/- 13 V): +15V R1 12k Vs at = +/- 13 V Vin a Vout R2 S4ka Find the following: a) Vref (reference voltage, which is the voltage across R2) b) Vout when Vin = +5 V dc c) Vout when Vin = +2 V dc d) Given that Vin is a sine wave with peak-to-peak voltage = 12.5 V (pk-to-pk) (that is, Vin is a sine wave with a positive peak voltage of +6.25 V and a negative peak voltage of -6.25 V): Sketch the input voltage (Vin) and sketch the output voltage (Vout) waveforms showing the positive and negative peak numerical voltage values and pertinent horizontal axis numerical angles (w-t) for each waveform. Be sure to show the correct wave shapes and phase.
