Given the unity feedback system in the figure below,
Given The Unity Feedback System In The Figure Below Do The Following A Sketch The Locus Of The Roots And Find The Asy 1 (13.56 KiB) Viewed 55 times
Given The Unity Feedback System In The Figure Below Do The Following A Sketch The Locus Of The Roots And Find The Asy 2 (23.62 KiB) Viewed 55 times
do the following:
a) Sketch the locus of the roots and find the
asymptotes.
b) Determine the value of gain that will make
the system marginally stable.
d) Determine the gain value for which the
closed loop transfer function will have a pole on the real axis
at –0.5
*Explain the calculation

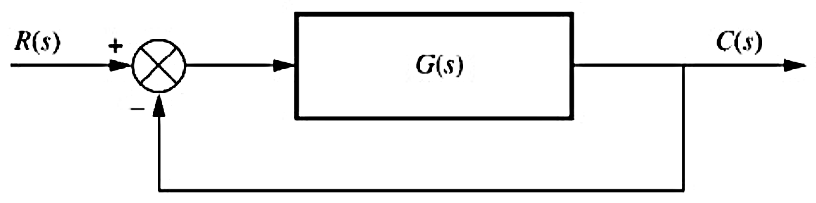

R(S) C(s) G(s)

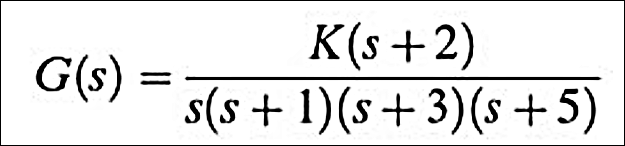

G(s) = K(s+2) s(s + 1)(8 + 3)(s +5)
