One of the most important applications of industrial robots is that of welding. Many such robots use a vision system to

[answerhappygod]

One Of The Most Important Applications Of Industrial Robots Is That Of Welding Many Such Robots Use A Vision System To 1 (52.35 KiB) Viewed 38 times

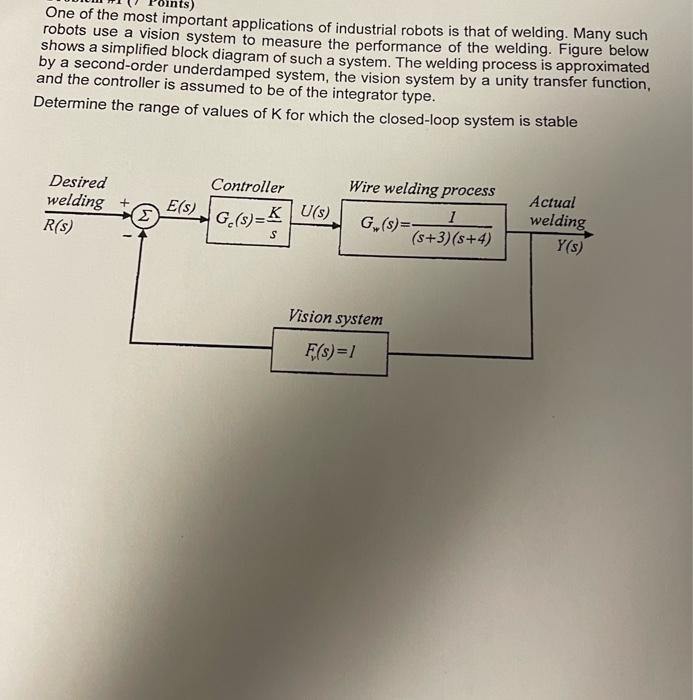

One of the most important applications of industrial robots is that of welding. Many such robots use a vision system to measure the performance of the welding. Figure below shows a simplified block diagram of such a system. The welding process is approximated by a second-order underdamped system, the vision system by a unity transfer function, and the controller is assumed to be of the integrator type. Determine the range of values of K for which the closed-loop system is stable Controller Desired welding + R(S) E(S) G.(S)=KU(s) Wire welding process 1 G. (s)= (5+3)(8+4) Actual welding Y(s) S Vision system F(s)=1
