20. For the below ripple counter with positive edge triggered flip flop, where the present state of counter is Q2Q1Q0 =
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
20. For the below ripple counter with positive edge triggered flip flop, where the present state of counter is Q2Q1Q0 =

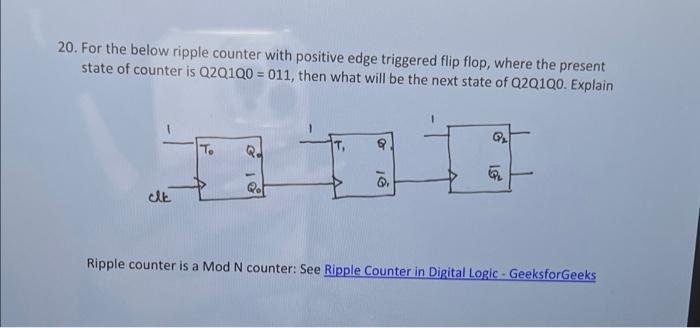

20. For the below ripple counter with positive edge triggered flip flop, where the present state of counter is Q2Q1Q0 = 011, then what will be the next state of Q2Q1Q0. Explain . cit Ripple counter is a Mod N counter: See Ripple Counter in Digital Logic - GeeksforGeeks
