Question 1 20 V RD 22uF R1 he MPF 102 11 HE 22uF 22uF 0.353 VA KH2/1 Deg R2 Rs w W Figure 1 From the data sheet K = 3.24

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 1 20 V RD 22uF R1 he MPF 102 11 HE 22uF 22uF 0.353 VA KH2/1 Deg R2 Rs w W Figure 1 From the data sheet K = 3.24

Post by answerhappygod »

Question 1 20 V Rd 22uf R1 He Mpf 102 11 He 22uf 22uf 0 353 Va Kh2 1 Deg R2 Rs W W Figure 1 From The Data Sheet K 3 24 1
Question 1 20 V Rd 22uf R1 He Mpf 102 11 He 22uf 22uf 0 353 Va Kh2 1 Deg R2 Rs W W Figure 1 From The Data Sheet K 3 24 1 (97.87 KiB) Viewed 44 times

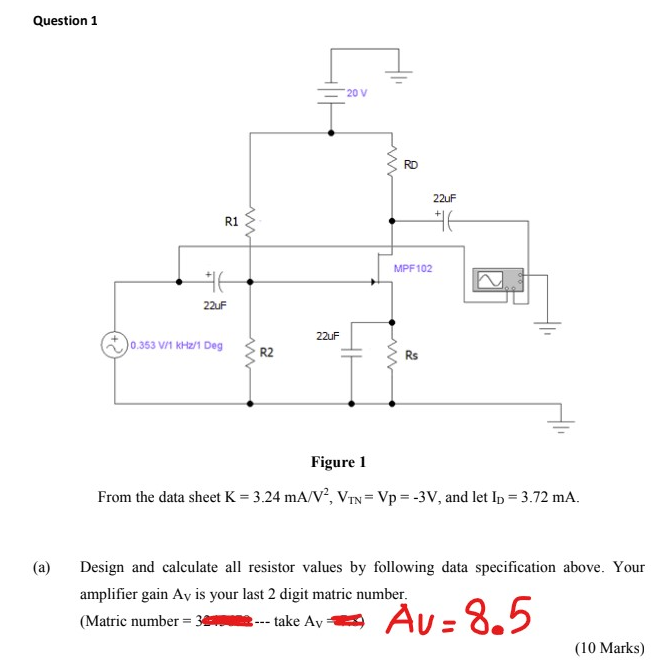

Question 1 20 V RD 22uF R1 he MPF 102 11 HE 22uF 22uF 0.353 VA KH2/1 Deg R2 Rs w W Figure 1 From the data sheet K = 3.24 mA/V?, Vrn= Vp =-3V, and let Ip = 3.72 mA. (a) Design and calculate all resistor values by following data specification above. Your amplifier gain Ay is your last 2 digit matric number. (Matric number = 3.3 --- take Ay (10 Marks) Av=8.5
