(b) The logic circuit governing a pushbutton switch is illustrated in Figure Q3. Stop STOP Motor M Start START Figure Q3

Post by answerhappygod »

B The Logic Circuit Governing A Pushbutton Switch Is Illustrated In Figure Q3 Stop Stop Motor M Start Start Figure Q3 1
B The Logic Circuit Governing A Pushbutton Switch Is Illustrated In Figure Q3 Stop Stop Motor M Start Start Figure Q3 1 (66.8 KiB) Viewed 41 times

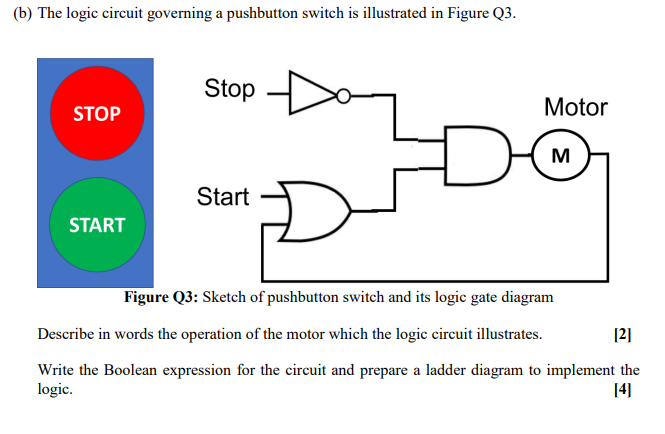

(b) The logic circuit governing a pushbutton switch is illustrated in Figure Q3. Stop STOP Motor M Start START Figure Q3: Sketch of pushbutton switch and its logic gate diagram Describe in words the operation of the motor which the logic circuit illustrates. 121 Write the Boolean expression for the circuit and prepare a ladder diagram to implement the logic. 14
