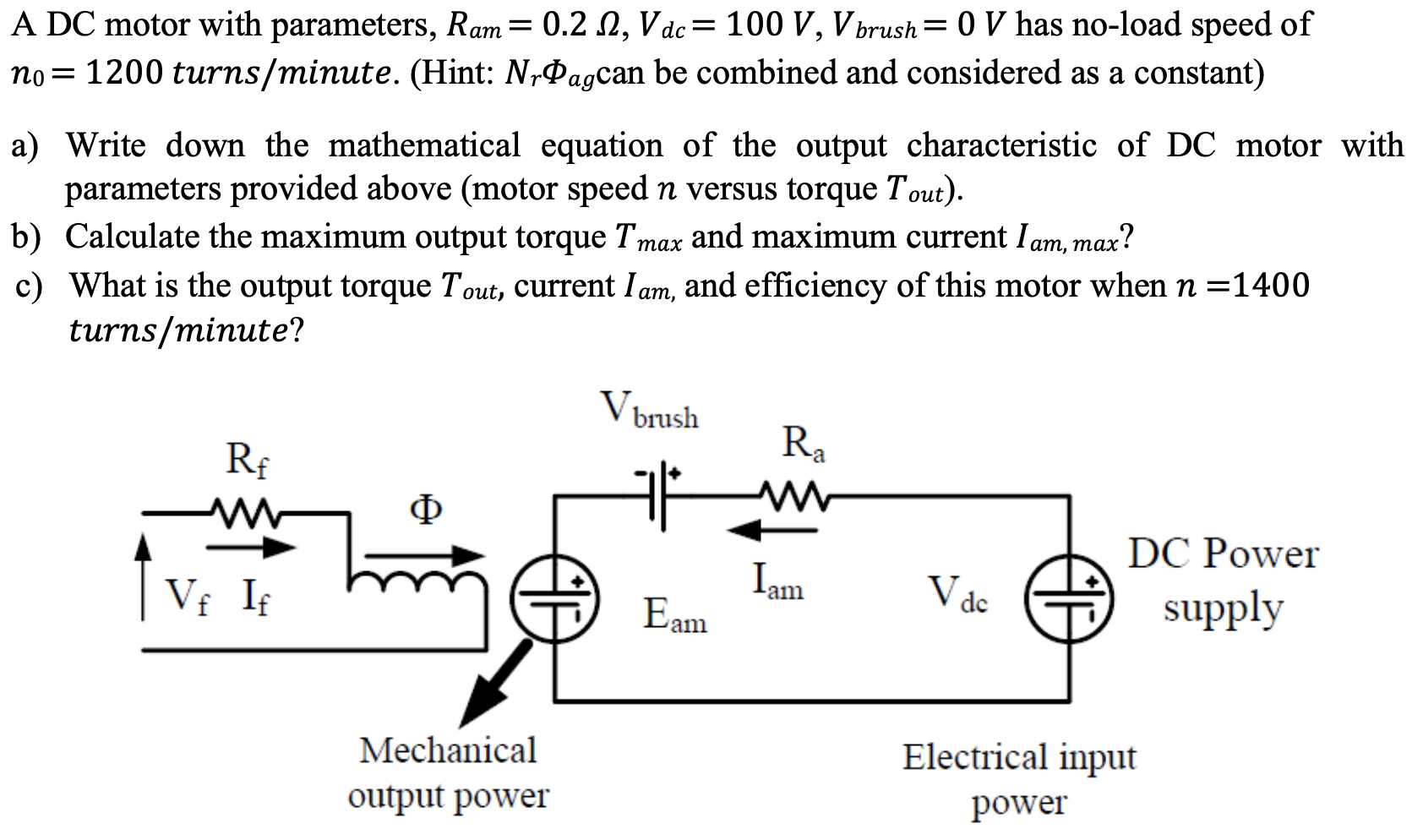

- - A DC motor with parameters, Ram= 0.2 12, Vdc= 100 V, V brush= 0 V has no-load speed of no = 1200 turns/minute. (Hint: Nagcan be combined and considered as a constant) = a) Write down the mathematical equation of the output characteristic of DC motor with parameters provided above (motor speed n versus torque Tout). b) Calculate the maximum output torque T max and maximum current I am, max ? c) What is the output torque Tout, current I am, and efficiency of this motor when n=1400 turns/minute? , , V brush RE Ra w w Φ hingga Ve If Iam Vdc DC Power supply Eam Mechanical output power Electrical input power
