Points 3. Simplify the block diagram given below to a single block and find the transfer function T(S)=Y(s)/R(s). (Show

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Points 3. Simplify the block diagram given below to a single block and find the transfer function T(S)=Y(s)/R(s). (Show

Post by answerhappygod »

Points 3 Simplify The Block Diagram Given Below To A Single Block And Find The Transfer Function T S Y S R S Show 1
Points 3 Simplify The Block Diagram Given Below To A Single Block And Find The Transfer Function T S Y S R S Show 1 (19.95 KiB) Viewed 69 times

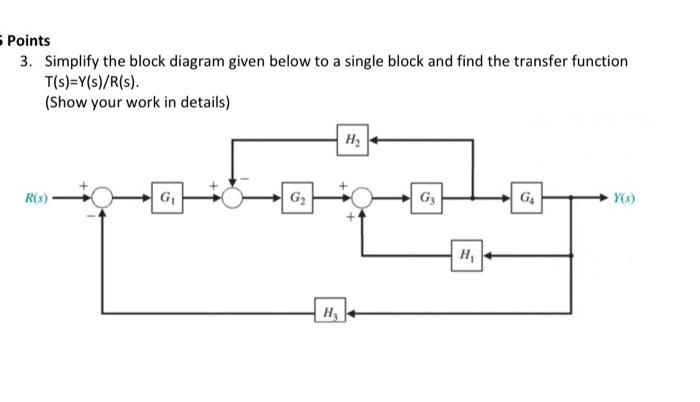

Points 3. Simplify the block diagram given below to a single block and find the transfer function T(S)=Y(s)/R(s). (Show your work in details) н, R(3) G G2 G3 G4 Y() H HE
