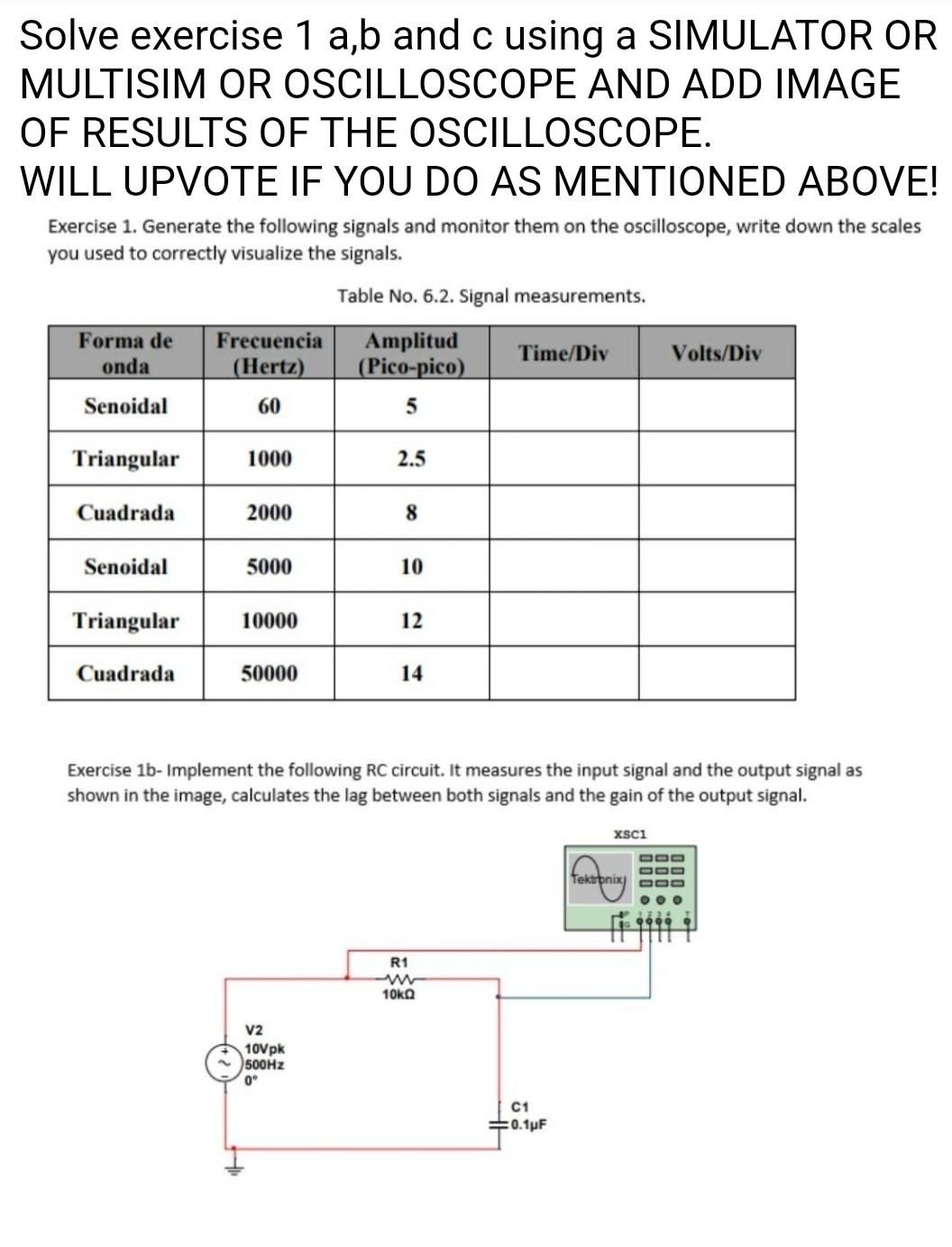

Solve exercise 1 a,b and c using a SIMULATOR OR MULTISIM OR OSCILLOSCOPE AND ADD IMAGE OF RESULTS OF THE OSCILLOSCOPE. WILL UPVOTE IF YOU DO AS MENTIONED ABOVE! Exercise 1. Generate the following signals and monitor them on the oscilloscope, write down the scales you used to correctly visualize the signals. Table No. 6.2. Signal measurements. Forma de Frecuencia Amplitud Time/Div (Hertz) (Pico-pico) Volts/Div Senoidal 5 Triangular onda 60 1000 2.5 Cuadrada 2000 8 Senoidal 5000 10 Triangular 10000 12 Cuadrada 50000 14 Exercise 1b- Implement the following RC circuit. It measures the input signal and the output signal as shown in the image, calculates the lag between both signals and the gain of the output signal. xsci Tektrpnix) R1 10k V2 10Vpk 500HZ 0° C1 +0.1uF

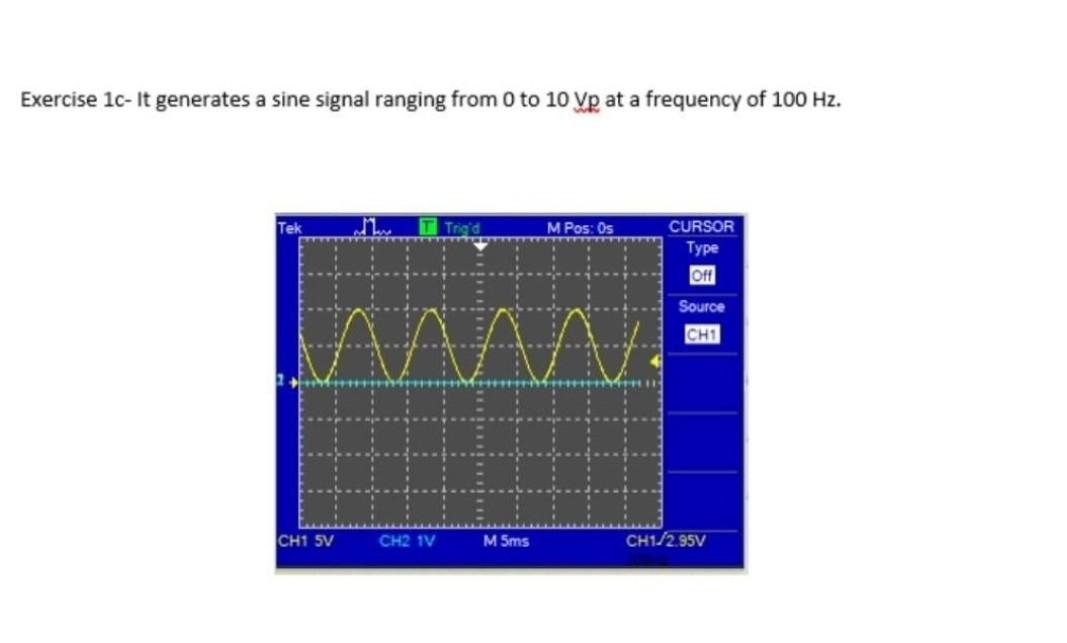

Exercise 1c- It generates a sine signal ranging from 0 to 10 Vp at a frequency of 100 Hz. Tek Trig'd M Pos: Os CURSOR Type Off Source сні MANN CH1 SV CH2 1V M 5ms CH1/2.95V
