1. (a) The refractive index spectrum of a waveguide material is shown in Figure 1. Plot the group delay spectrum describ

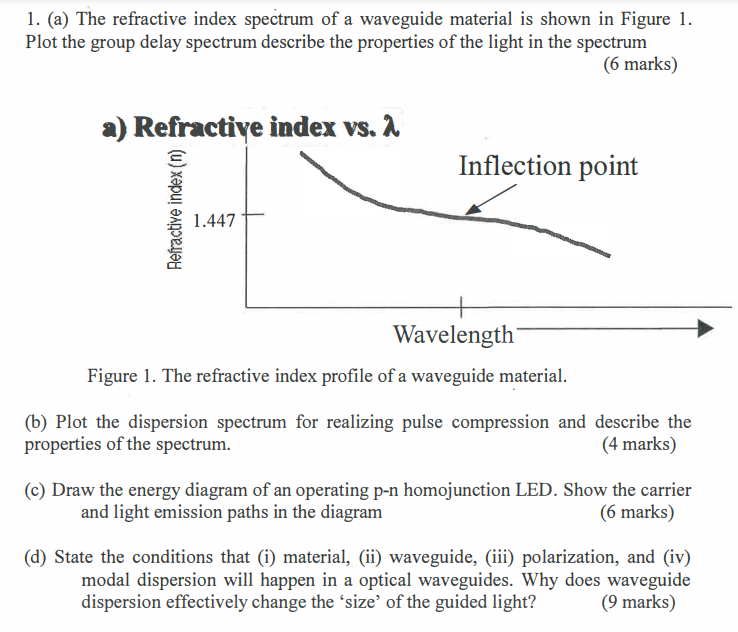

1. (a) The refractive index spectrum of a waveguide material is shown in Figure 1. Plot the group delay spectrum describe the properties of the light in the spectrum (6 marks) a) Refractive index vs. À Inflection point Refractive index (n) 1.447 Wavelength Figure 1. The refractive index profile of a waveguide material. (b) Plot the dispersion spectrum for realizing pulse compression and describe the properties of the spectrum. (4 marks) (C) Draw the energy diagram of an operating p-n homojunction LED. Show the carrier and light emission paths in the diagram (6 marks) (d) State the conditions that (i) material, (ii) waveguide, (iii) polarization, and (iv) modal dispersion will happen in a optical waveguides. Why does waveguide dispersion effectively change the size of the guided light? (9 marks)
