[8 marks] Refer to the following information and datapath, what
will be the values in (a), (b), (c), and (d) if the instruction or
$s0, $s2, $s3 is executed. Answer in either HEX or BIN format,
otherwise ZERO mark is given !!
8 Marks Refer To The Following Information And Datapath What Will Be The Values In A B C And D If The Inst 1 (157.53 KiB) Viewed 47 times

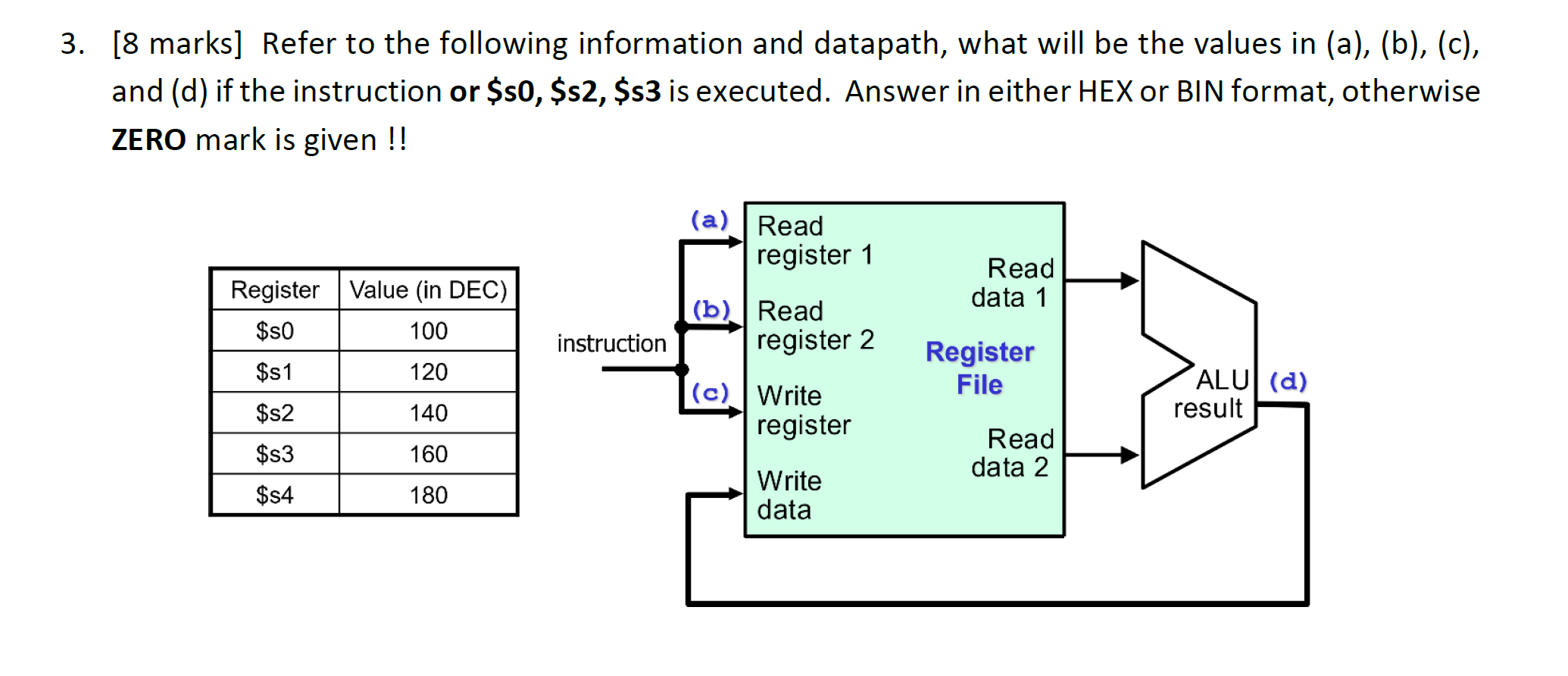

3. [8 marks] Refer to the following information and datapath, what will be the values in (a), (b), (c), and (d) if the instruction or $50, $s2, $s3 is executed. Answer in either HEX or BIN format, otherwise ZERO mark is given !! (a) Read register 1 Read data 1 Register Value (in DEC) $50 100 $s 1 120 (b) Read register 2 instruction Register File ALU (d) result $s2 (c) | Write register 140 160 $s3 $54 Read data 2 180 Write data
