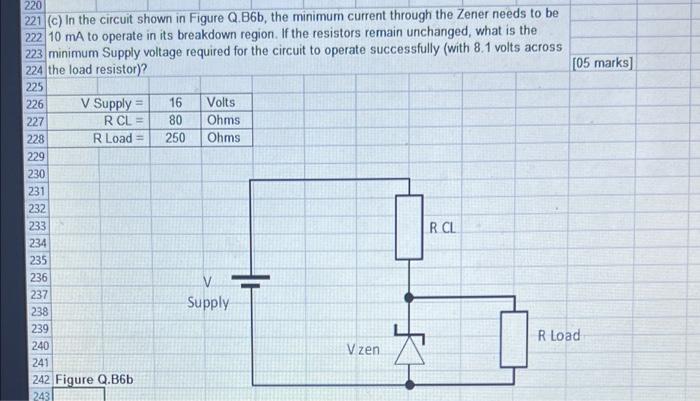

220 221 (c) In the circuit shown in Figure Q.B6b, the minimum current through the Zener needs to be 222 10 mA to operate in its breakdown region. If the resistors remain unchanged, what is the 223 minimum Supply voltage required for the circuit to operate successfully (with 8.1 volts across 224 the load resistor)? [05 marks] 225 226 V Supply 16 Volts 227 RCL = 80 Ohms 228 R Load = 250 Ohms 229 230 231 232 233 R CL 234 235 236 237 Supply 238 239 R Load 240 Vzen 241 242 Figure Q.B6b 243 +
