PROBLEM 4: (18 pts) The heights above the earth of a transmitter and a receiver are, respectively, 100 m and I, as shown

Post by answerhappygod »

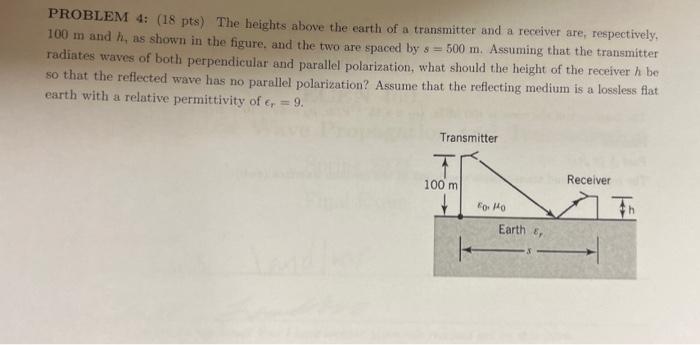

Problem 4 18 Pts The Heights Above The Earth Of A Transmitter And A Receiver Are Respectively 100 M And I As Shown 1
Problem 4 18 Pts The Heights Above The Earth Of A Transmitter And A Receiver Are Respectively 100 M And I As Shown 1 (22.53 KiB) Viewed 57 times
PROBLEM 4: (18 pts) The heights above the earth of a transmitter and a receiver are, respectively, 100 m and I, as shown in the figure, and the two are spaced by s = 500 m. Assuming that the transmitter radiates waves of both perpendicular and parallel polarization, what should the height of the receiver h be so that the reflected wave has no parallel polarization? Assume that the reflecting medium is a lossless flat earth with a relative permittivity of €r = 9. Transmitter I 100 m Receiver to lo Earth,
